Climate Control System does not Operate on Rear Left Side: Wiring Diagram

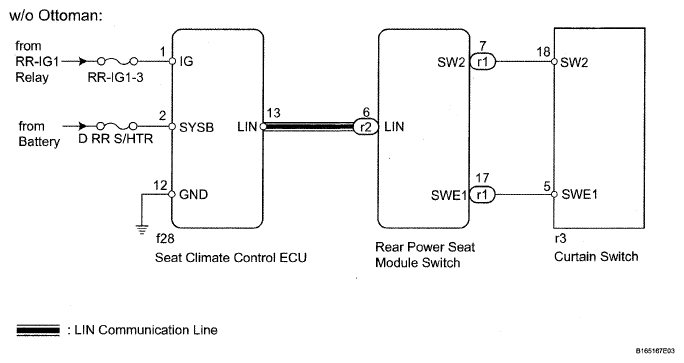

Fig 1: Climate Control System - Wiring Diagram (W/O Ottoman)
G04952673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Climate Control System - Wiring Diagram (W/ Ottoman)
G04952674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
