CLIMATE CONTROL SEAT SWITCH (for Front Side): Components

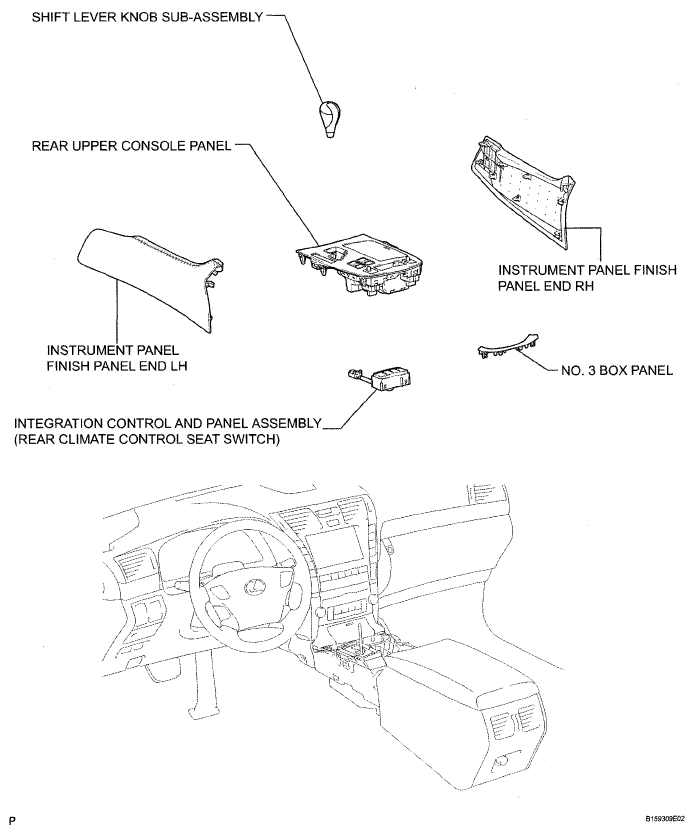

Fig 1: Identifying Climate Control Seat Switch With Associated Components (Front Side)

G04953192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
