Driver Side Power Mirror cannot be Adjusted with Power Mirror Switch: Wiring Diagram

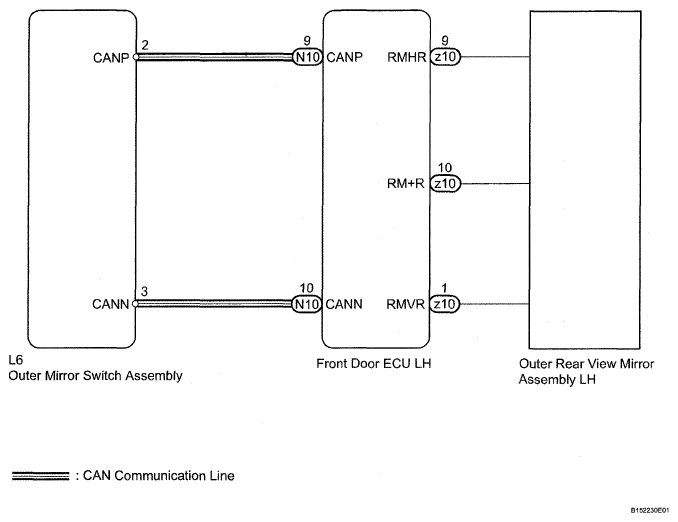

Fig 1: Driver Side Power Mirror Cannot Be Adjusted With Power Mirror Switch - Wiring Diagram
G04952271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
