Home >> Lexus >> 2008 >> LS 460L >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Radiator Grille >> Components

Radiator Grille: Components

Fig 1: Identifying Radiator Grille Components (1 Of 2)
G04946486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

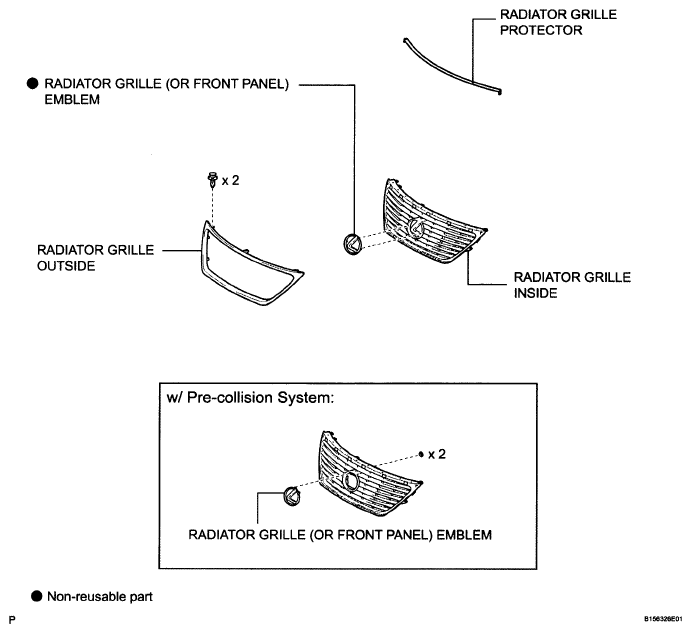

Fig 2: Identifying Radiator Grille (2 Of 2)
G05849509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
