Outside Moulding: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• When installing the moulding, heat the vehicle body and moulding using a heat light.

Heating temperature

1. INSTALL OUTSIDE MOULDING
   1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
   2. If reusing the moulding: Clean the moulding.
      1. Using a heat light, heat the moulding.
      2. Remove the double-sided tape from the moulding.
      3. Wipe off any tape adhesive residue with cleaner.
      4. Apply new double-sided tape to the moulding, as shown in the illustration.

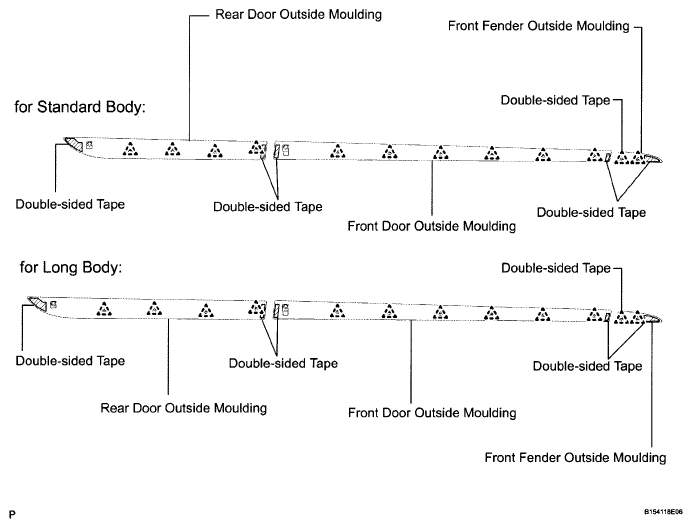

         Fig 1: Identifying Front Door And Rear Door Outside Moulding With Double-Sided Tape

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the moulding.
      1. Using a heat light, heat the vehicle body and moulding.
      2. Remove the peeling paper from the face of the moulding.

         HINT:

         After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Attach the 12 clips to install the moulding.
   4. Install the nut and front door hole plug.
      Fig 2: Identifying Front Door Hole Plug And Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Install the nut and rear door hole plug.
      Fig 3: Identifying Front Door Hole Plug And Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
