Rear Door LH Entry Lock and Unlock Functions do not Operate: Wiring Diagram

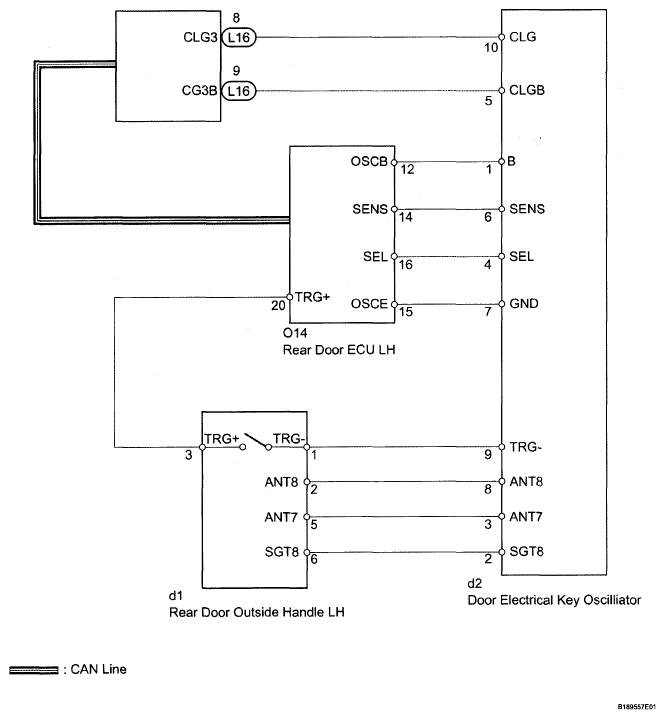

Fig 1: Rear Door LH Entry Lock And Unlock Functions - Wiring Diagram

G05852825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
