Integration Control and Panel Assembly Power Source Circuit: Wiring Diagram

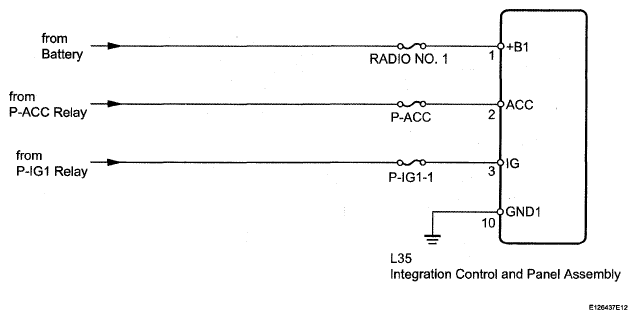

Fig 1: Integration Control And Panel Assembly Power Source Circuit - Wiring Diagram
G04953855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
