DTC B2405: Sub Bus LIN Module Communication Malfunction: Wiring Diagram

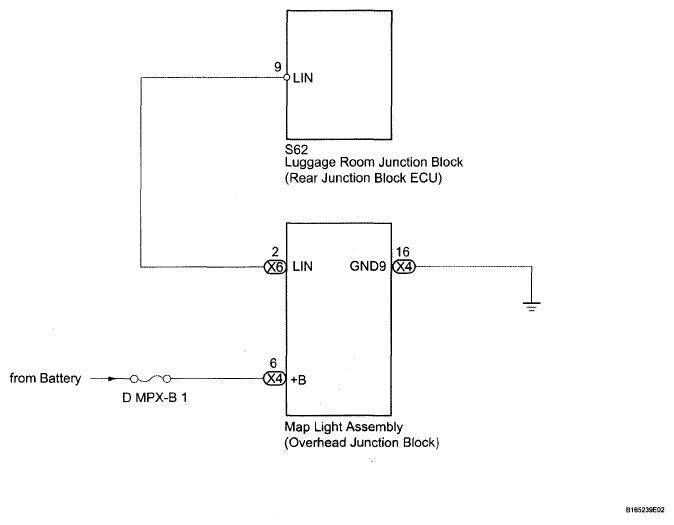

Fig 1: Identifying Sub Bus LIN Module Communication - Wiring Diagram

G05849769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
