Skid Control ECU Communication Stop Mode: Wiring Diagram

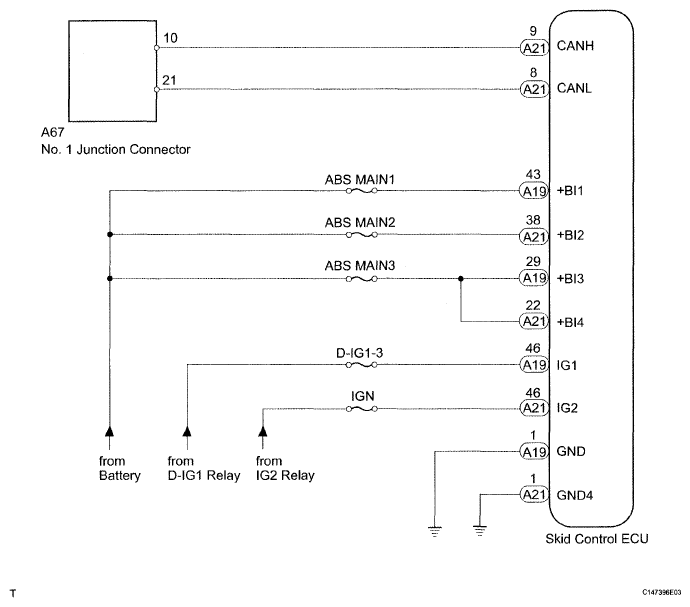

Fig 1: Skid Control ECU Communication Stop Mode - Wiring Diagram

G04953625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
