Customize Parameters
- CUSTOMIZING FUNCTION WITH THE TECHSTREAM (REFERENCE) NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first male sure that the function is set to the default setting.
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus:
- Select: Customize Setting /
- Select the setting by referring to the table below.
Illuminated Entry:
ILLUMINATED ENTRY - DEFAULT SETTING CHARTDisplay Default Contents Setting I/L when ACC OFF ON Function to light the interior light when the engine switch is operated from on (IG or ACC) to off ON/OFF Lighting Time 15s Function to change the lighting time after closing the door. (It will quickly fade out in case of turning the engine switch on (IG)) 7.5s/15s/30s Light Control ON Function to light up door inside handle light when the engine switch is on (IG) and shift position is not P ON / OFF I/L ON W/Door Key Unlock ON Function to light the interior light, etc. when the door is unlocked with a transmitter, door key or door lock control switch. ON/OFF Mirr-Foot-Lgt Approached ON Door mirror foot light (when approaching vehicle) ON / OFF Mirr-Foot-Lgt Unlocked ON Door mirror foot light (when unlocking doors) ON / OFF Mirr-Foot-Lgt w/Master SW ON Door mirror foot light (when manually unlocking doors) ON / OFF S-Belt-Bkl-Lgt/Door Open ON Seat belt buckle illumination (when door is open) ON / OFF S-Belt-Bkl-Lgt/ACC OFF ON Seat belt buckle illumination (when electrical accessories are OFF) ON/OFF Mirror Foot Light Time 15s Door mirror foot light illumination duration 0s/ 7.5s /15s /30s Room Light when Aprchd ON Dome light illumination (when approaching vehicle) ON / OFF Inside Foot Light ON Interior foot light illumination ON/OFF Center Console Spot Light ON Center console spot light ON / OFF Light Control:

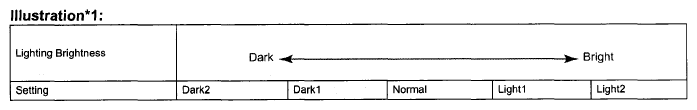

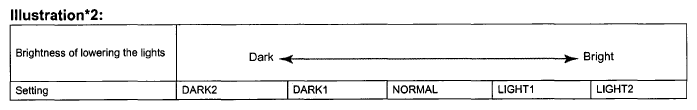

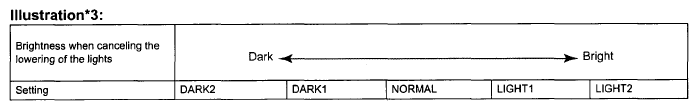

LIGHT CONTROL - DEFAULT SETTING CHARTDisplay Default Contents Setting Light Auto OFF Delay 30s Function to keep on lighting the headlight for a certain period of time after closing all the doors with the engine switch turned from on (IG) to off under the condition that the light control switch is at HEAD or AUTO with the headlight ON OFF / 30s / 60s / 90s Sensitivity NORMAL Function to adjust the sensitivity of lighting illumination*1. Light2 / Light1 / Normal / Dark1 / Dark2 Disp Ex ON Sen NORMAL Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to the illustration*2. LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2 Disp Ex OFF Sen NORMAL Changes brightness when canceling lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to the illustration*3. LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2 DRL Function ON DRL control ON / OFF HINT:
The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.
- Door linked map light and personal light illumination control
Mode 1: When door is opened, map light of opened door illuminates, or personal light illuminates
Mode 2: When door is opened, all map lights and personal lights illuminate
Mode 3: Map lights and personal lights are not linked to doors
- To change modes, press the map light assembly DOOR and ON switch simultaneously, and then turn the engine switch from off to on (IG). Each engine switch off to on (IG) operation will change the mode (Mode 1 → Mode 2 → Mode 3 → Mode 1).
HINT:
After changing modes, the map light responds by blinking as follows: Mode 1: once; Mode 2: twice; Mode 3: three times.
