Sound Signal Circuit between Radio Receiver and Multi-display Controller: Wiring Diagram

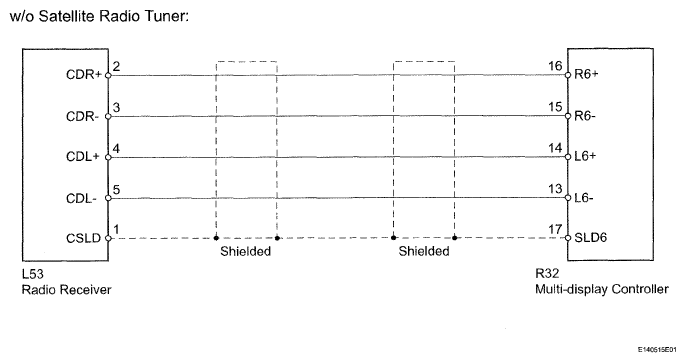

Fig 1: Radio Receiver And Multi-Display Controller - Wiring Diagram (1 Of 2)
G04949024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

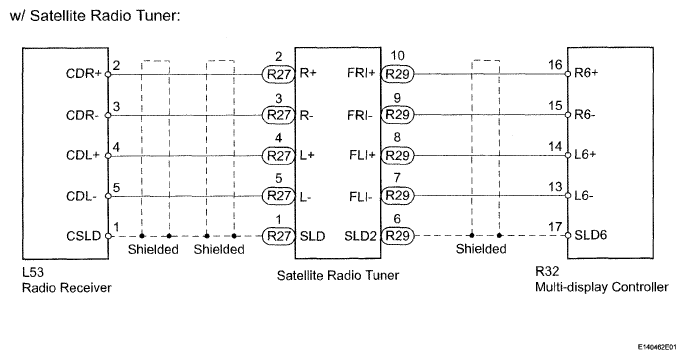

Fig 2: Radio Receiver And Multi-Display Controller - Wiring Diagram (2 Of 2)
G04949025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
