Shift Paddle Switch Circuit: Wiring Diagram

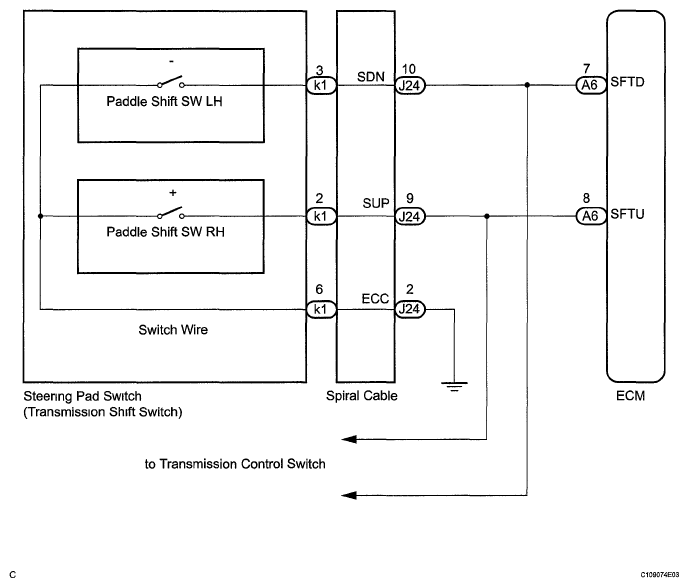

Fig 1: Shift Paddle Switch - Wiring Diagram

G05750790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
