Steering Gear: Components

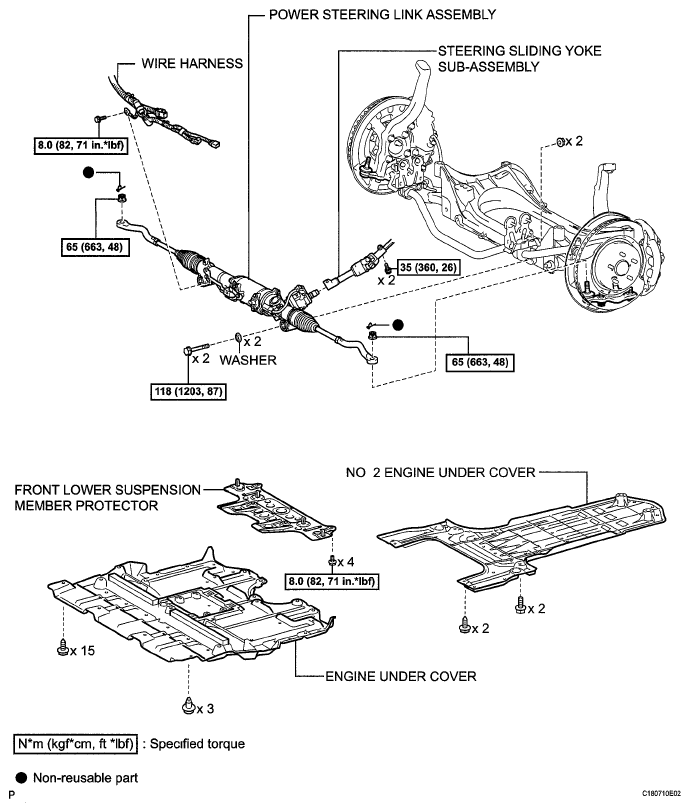

Fig 1: Steering Gear Replacement Components With Torque Specifications (1 Of 2)
G05753077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

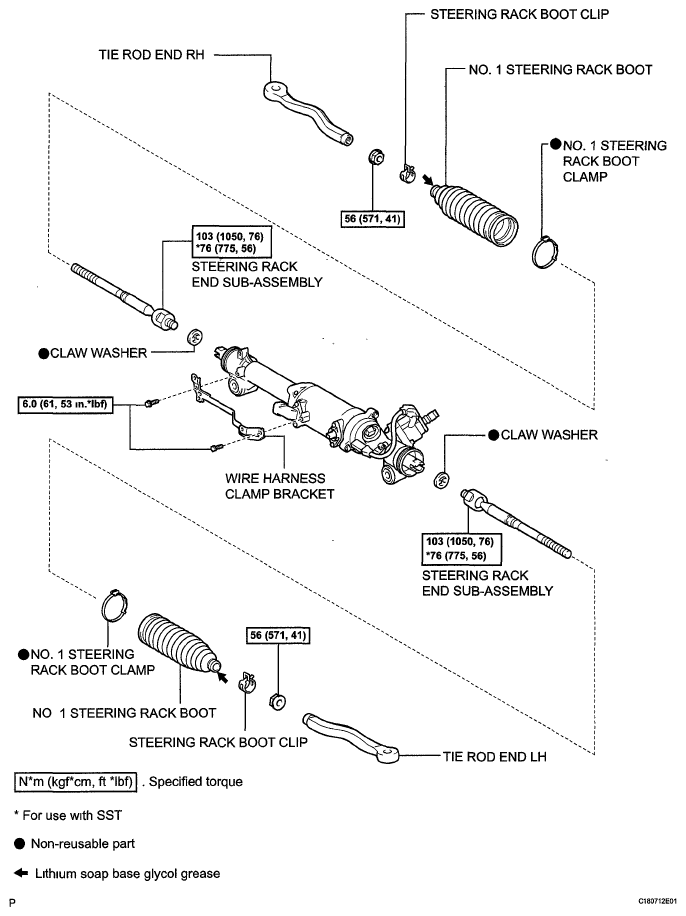

Fig 2: Steering Gear Replacement Components With Torque Specifications (2 Of 2)
G05753078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
