Seat Belt Control Ecu: Components

Fig 1: Identifying Seat Belt Control ECU Replacement Components (1 Of 2)
G05754831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

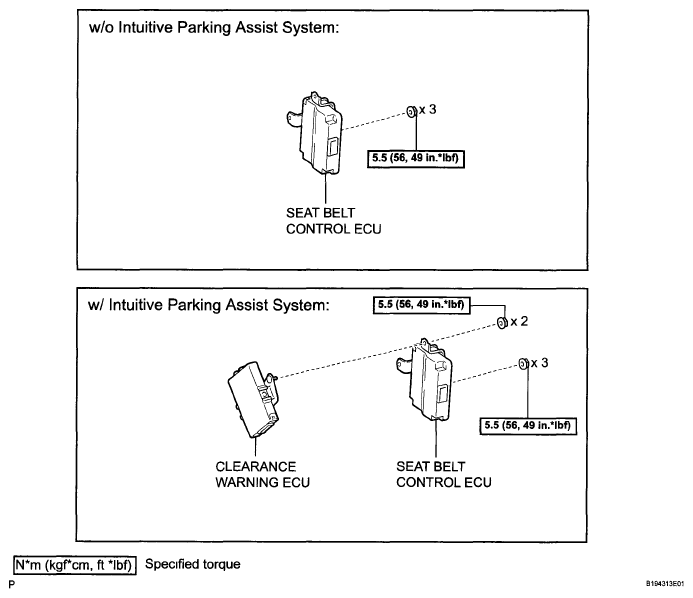

Fig 2: Seat Belt Control ECU Replacement Components With Torque Specifications (1 Of 2)
G05754832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
