DTC P2118 Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

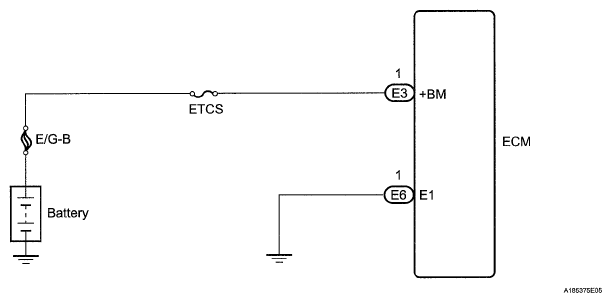

Fig 1: Throttle Actuator Control Motor - Wiring Diagram

G05751697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
