DTC P0230 Fuel Pump Primary Circuit: Wiring Diagram

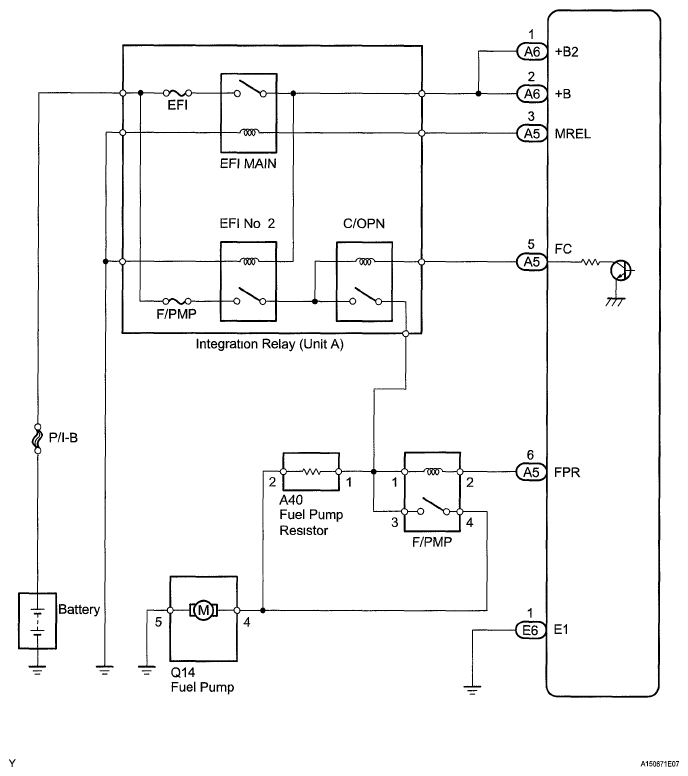

Fig 1: Fuel Pump Primary Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This troubleshooting procedure is based on the premise that engine cranking is possible. If the engine does not crank, proceed to the PROBLEM SYMPTOMS TABLE .
