DTC P0230 Fuel Pump Primary Circuit: Description

When the engine is cranked, a signal is sent from the main body ECU STSW terminal to the ECM STSW terminal Then voltage travels from the ECM STAR terminal through the park/neutral position switch to the ST relay coil. The STAR terminal also sends a signal to the STA terminal. When the STA signal and NE signal are input to the ECM, the ECM internal transistor Tr1 turns ON, which causes power to be supplied to the C/OPN relay coil (C/OPN relay turns ON). As a result, the F/PMP relay actuates, which causes the fuel pump to operate If the engine is operating and NE signals are being output, the ECM internal transistor Tr1 is ON (C/OPN relay turns ON), and the fuel pump will continue operating The fuel pump has a high and low speed setting. When the engine is starting or operating with a heavy load, the ECM internal transistor Tr2 turns ON to actuate the F/PMP relay so that the fuel pump operates at the high speed setting When the engine is idling or operating with a light load, Tr2 turns OFF, and current flows through the fuel pump resistor to the fuel pump so that the fuel pump operates at the low speed setting

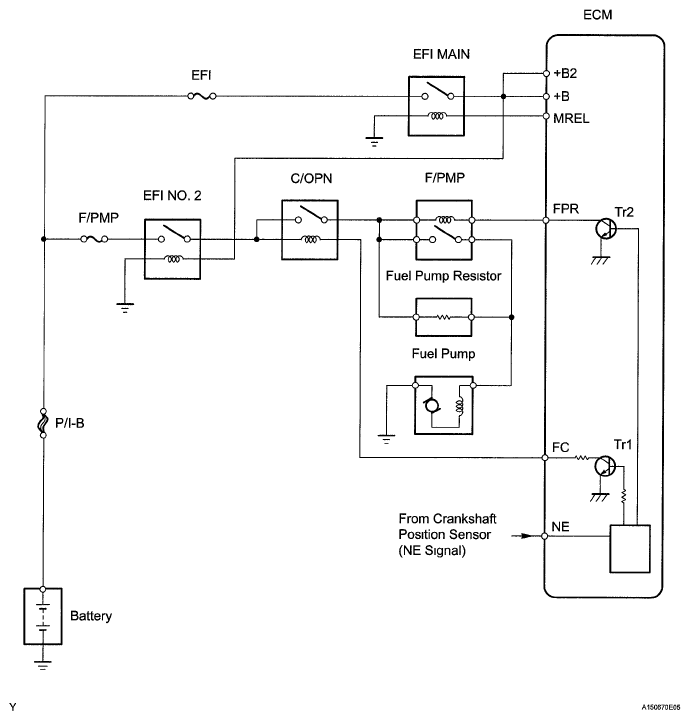

Fig 1: Fuel Pump Primary Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
