Cooling System (Mechanical): Cooling: Thermostat: Components

Fig 1: Identifying Thermostat Replacement Components With Torque Specification (1 Of 2)
G05750332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

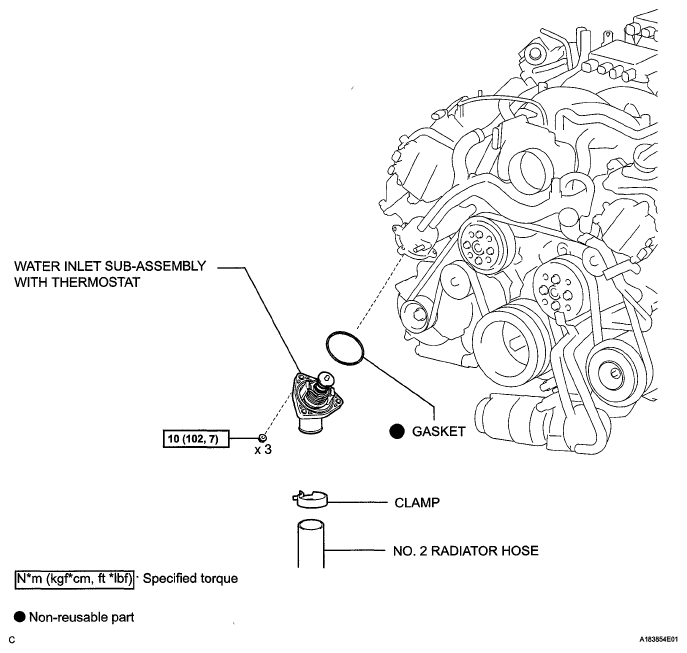

Fig 2: Thermostat Replacement Components With Torque Specifications (2 Of 2)
G05750333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
