Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Cooling >> Cooling Fan Motor >> Components

Cooling Fan Motor: Components

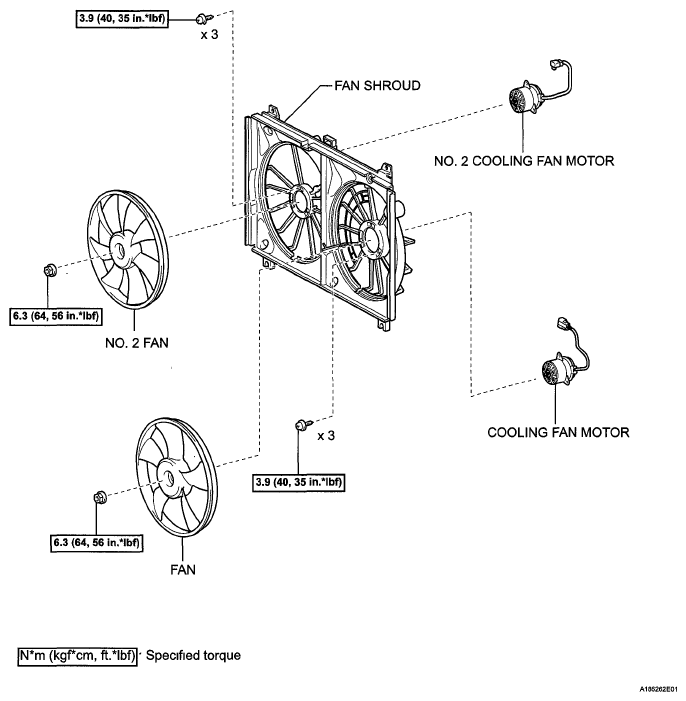

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications

G05750339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
