Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Electrical >> Horns >> Horn >> Low Pitched Horn >> Components

Low Pitched Horn: Components

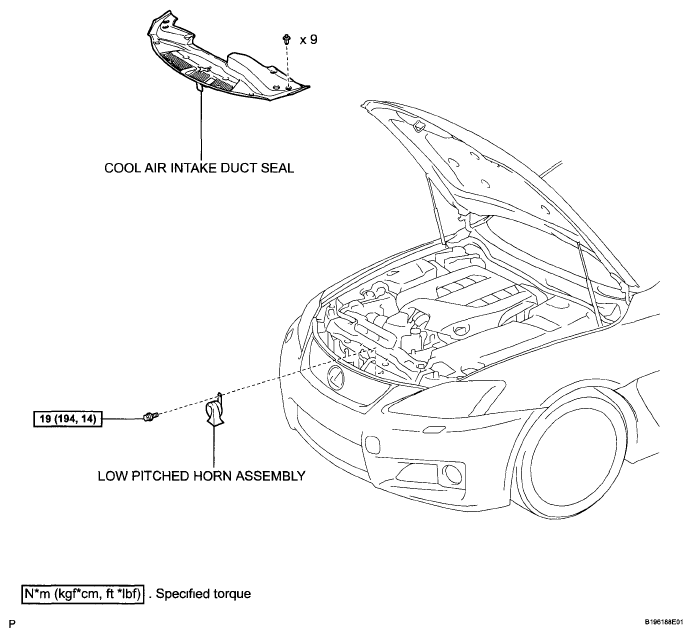

Fig 1: Low Pitched Horn Replacement Components With Torque Specifications

G05756660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
