System Diagram

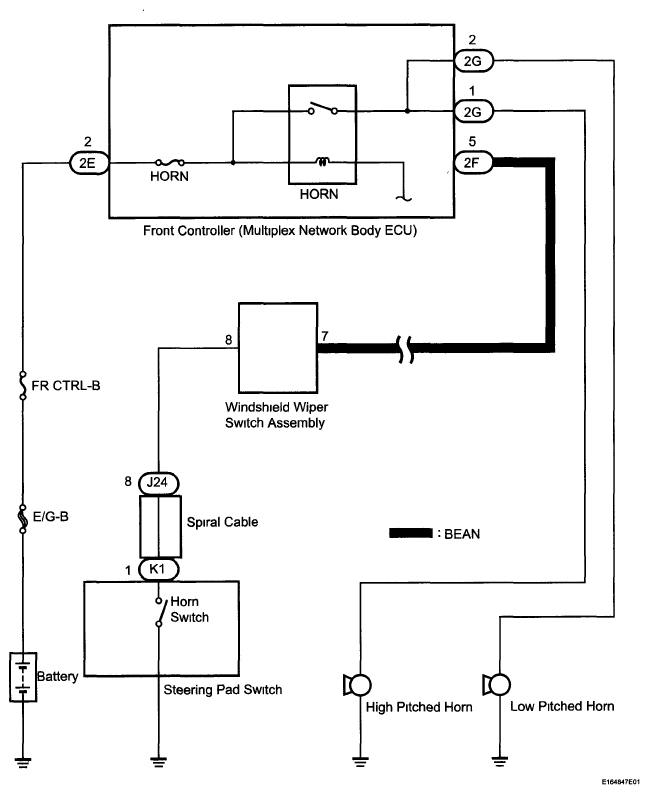

Fig 1: Horn System Diagram

G05756659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
