Parking Brake Cable: Components

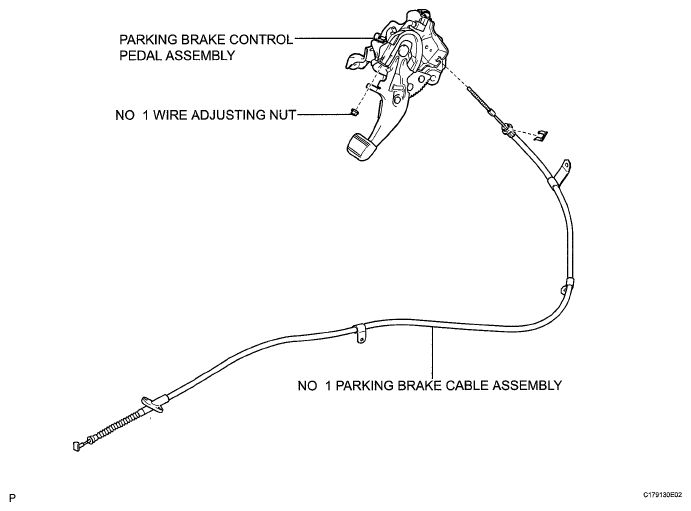

Fig 1: Parking Brake Cable Replacement Components (1 Of 3) With Torque Specification
G05752872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

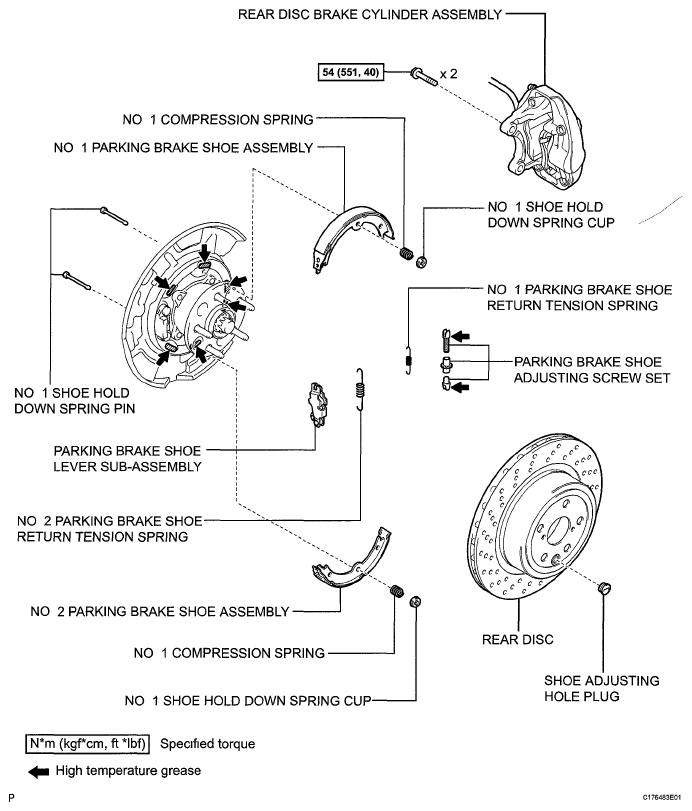

Fig 2: Parking Brake Cable Replacement Components (2 Of 3) With Torque Specification
G05752873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

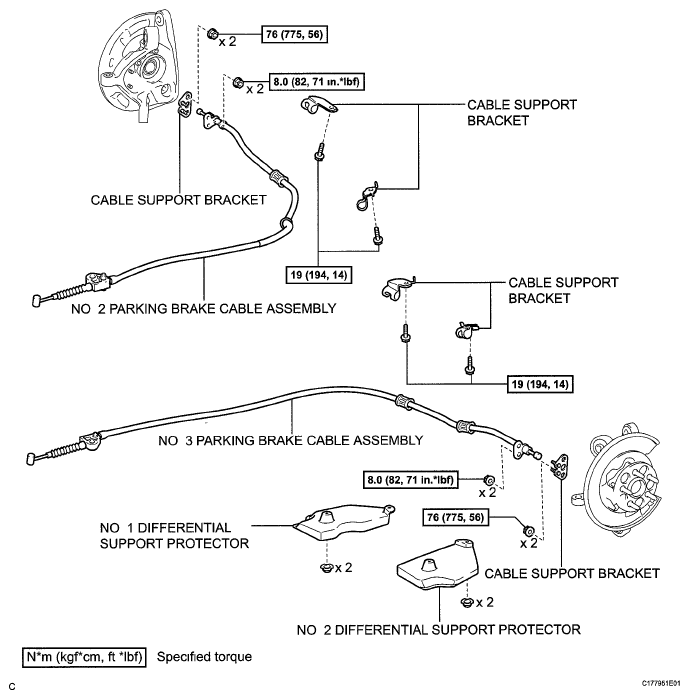

Fig 3: Parking Brake Cable Replacement Components (3 Of 3) With Torque Specification
G05752874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
