VSC OFF Indicator Light Remains ON: Wiring Diagram

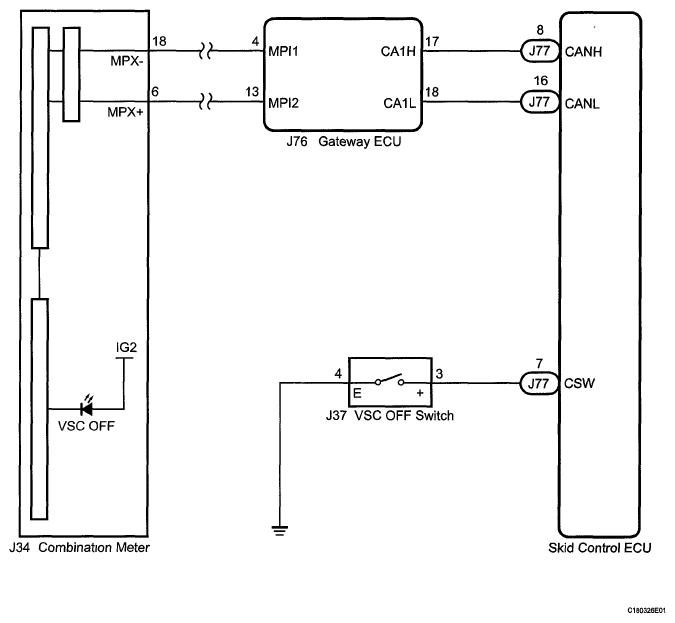

Fig 1: Combination Meter Wiring Diagram

G05752657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
