Sliding Roof Switch Assembly: Inspection

  1. INSPECT MAP LIGHT ASSEMBLY
    1. Remove the map light assembly.

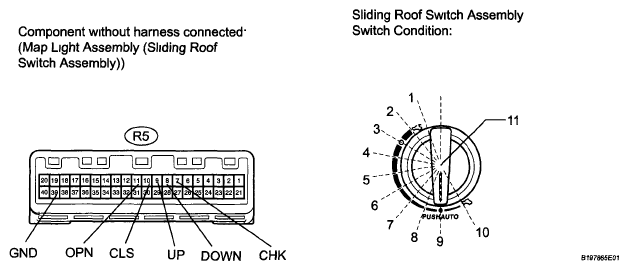

      Fig 1: Identifying Sliding Roof Switch Assembly With Switch Condition
      G05755878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      R5-8 (DOWN) - R5-39 (GND) 1 Below 100 Ω
      R5-9 (UP) - R5-39 (GND) 1 1 kΩ or higher
      R5-10 (CLS) - R5-39 (GND) 1 1 kΩ or higher
      R5-11 (OPN) - R5-39 (GND) 1 1 kΩ or higher
      R5-8 (DOWN) - R5-39 (GND) 2 Below 100 Ω
      R5-9 (UP) - R5-39 (GND) 2 Below 100 Ω
      R5-10 (CLS) - R5-39 (GND) 2 1 kΩ or higher
      R5-11 (OPN) - R5-39 (GND) 2 1 kΩ or higher
      R5-8 (DOWN) - R5-39 (GND) 3 1 kΩ or higher
      R5-9 (UP) - R5-39 (GND) 3 Below 100 Ω
      R5-10 (CLS) - R5-39 (GND) 3 1 kΩ or higher
      R5-11 (OPN) - R5-39 (GND) 3 1 kΩ or higher
      R5-8 (DOWN) - R5-39 (GND) 4 1 kΩ or higher
      R5-9 (UP) - R5-39 (GND) 4 Below 100 Ω
      R5-10 (CLS) - R5-39 (GND) 4 1 kΩ or higher
      R5-11 (OPN) - R5-39 (GND) 4 Below 100 Ω
      R5-8 (DOWN) - R5-39 (GND) 5 1 kΩ or higher
      R5-9 (UP) - R5-39 (GND) 5 1 kΩ or higher
      R5-10 (CLS) - R5-39 (GND) 5 1 kΩ or higher
      R5-11 (OPN) - R5-39 (GND) 5 Below 100 Ω
      R5-8 (DOWN) - R5-39 (GND) 6 1 kΩ or higher
      R5-9 (UP) - R5-39 (GND) 6 1 kΩ or higher
      R5-10 (CLS) - R5-39 (GND) 6 Below 100 Ω
      R5-11 (OPN) - R5-39 (GND) 6 Below 100 Ω
      R5-8 (DOWN) - R5-39 (GND) 7 1 kΩ or higher
      R5-9 (UP) - R5-39 (GND) 7 Below 100 Ω
      R5-10 (CLS) - R5-39 (GND) 7 Below 100 Ω
      R5-11 (OPN) - R5-39 (GND) 7 Below 100 Ω
      R5-8 (DOWN) - R5-39 (GND) 8 1 kΩ or higher
      R5-9 (UP) - R5-39 (6ND) 8 Below 100 Ω
      R5-10 (CLS) - R5-39 (GND) 8 Below 100 Ω
      R5-11 (OPN) - R5-39 (GND) 8 1 kΩ or higher
      R5-8 (DOWN) - R5-39 (GND) 9 Below 100 Ω
      R5-9 (UP) - R5-39 (GND) 9 Below 100 Ω
      R5-10 (CLS) - R5-39 (GND) 9 Below 100 Ω
      R5-11 (OPN) - R5-39 (GND) 9 1 kΩ or higher
      R5-8 (DOWN) - R5-39 (GND) 10 Below 100 Ω
      R5-9 (UP) - R5-39 (GND) 10 1 kΩ or higher
      R5-10 (CLS) - RS-39 (GND) 10 Below 100 Ω
      R5-11 (OPN) - R5-39 (GND) 10 1 kΩ or higher
      R5-7 (CHK) - R5-39 (GND) 11 Below 100 Ω

      If the result is not as specified, replace the map light assembly (sliding roof switch assembly).
