Rear Seat Assembly: Reassembly

  1. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER RH
    1. Using hog ring pliers, install 6 new hog rings

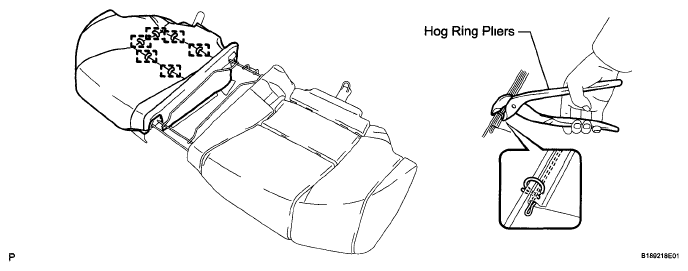

      Fig 1: Installing Separate Type Rear Seat Cushion Cover RH Hog Ring
      G05755032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
    2. Using hog ring pliers, install 20 new hog rings.

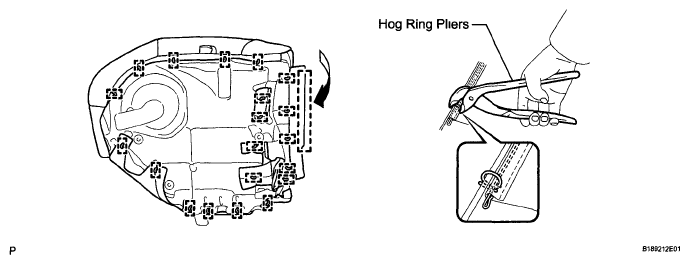

      Fig 2: Installing Separate Type Rear Seat Cushion Cover RH Hog Rings
      G05755033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
    3. Engage the hook and install bench type rear seat cushion cover RH to the separate type rear seat cushion pad sub-assembly.
  2. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER LH
    1. Using hog ring pliers, install 6 new hog rings.

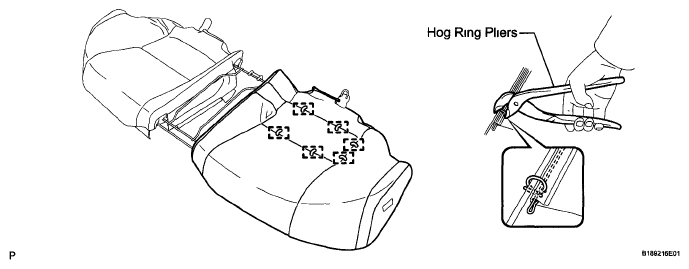

      Fig 3: Installing Separate Type Rear Seat Cushion Cover LH Hog Rings
      G05755034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
    2. Using hog ring pliers, install 21 new hog rings.

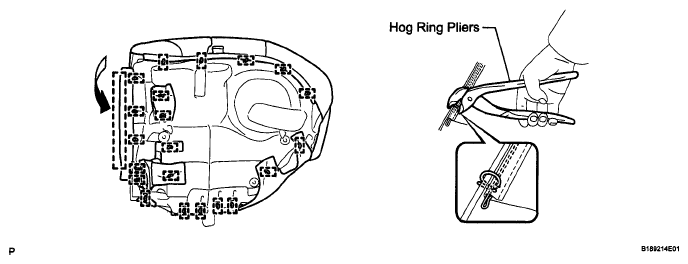

      Fig 4: Installing Separate Type Rear Seat Cushion Cover LH Hog Rings
      G05755035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
    3. Engage the hook and install bench type rear seat cushion cover LH to the separate type rear seat cushion pad sub-assembly.
  3. INSTALL REAR SEAT UNDER TRAY SUB-ASSEMBLY
    1. Engage the 2 hooks.
    2. Engage the 2 claws and install the rear seat under tray sub-assembly.
      Fig 5: Identifying Claws Of Rear Seat Under Tray Sub-Assembly
      G05755027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL BENCH TYPE REAR SEATBACK COVER
    1. Using hog ring pliers, install 28 new hog rings.

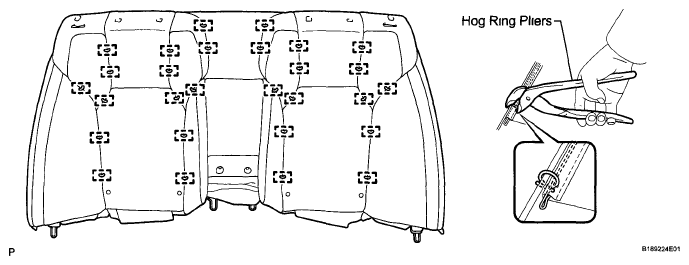

      Fig 6: Installing Bench Type Rear Seatback Cover Hog Rings
      G05755037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
    2. Using hog ring pliers, install the bench type rear seatback cover to the bench type rear seatback pad with 46 new hog rings

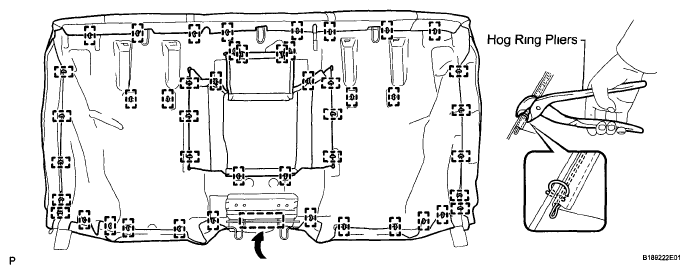

      Fig 7: Installing Bench Type Rear Seatback Cover To Bench Type Rear Seatback Pad With Hog Ring
      G05755038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
  5. INSTALL REAR SEAT SHOULDER BELT GUIDE RH
    1. Install the rear seat shoulder belt guide RH with the screw (A) and the screws (B)
      Fig 8: Identifying Screws Of Rear Seat Shoulder Belt Guide RH
      G05755024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR SEAT SHOULDER BELT GUIDE LH
    1. Install the rear seat shoulder belt guide LH with the screw (A) and the screws (B).
    Fig 9: Identifying Rear Seat Shoulder Belt Guide LH Screw
    G05755023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR SEAT HEADREST SUPPORT
    1. Engage the 8 claws and install the 4 rear seat headrest supports.

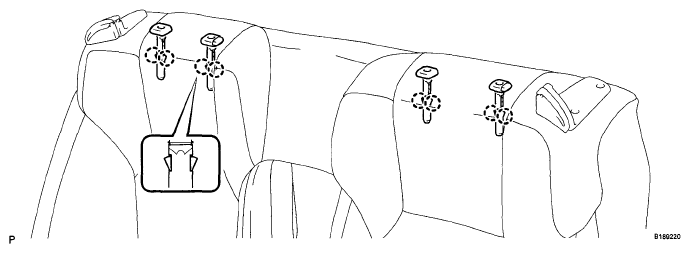

      Fig 10: Identifying Claws Of Rear Seat Headrest Supports
      G05755022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY
    1. Engage the 2 hooks
    2. Attach the 6 fasteners and temporary install the rear seat center armrest cup holder sub-assembly as shown in the illustration
      Fig 11: Identifying Fasteners Of Rear Seat Center Armrest Cup Holder Sub-Assembly
      G05755021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear seat center armrest cup holder sub-assembly with the 2 screws.
    4. Cover the rear seat center armrest cover to the rear seat center armrest pad
      Fig 12: Identifying Rear Seat Center Armrest Cup Holder Sub-Assembly Screws
      G05755020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the the 2 bushes.
    6. Install the 2 bolts.
      Fig 13: Identifying Rear Seat Center Armrest Cover Bushes And Bolts
      G05755019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY
    1. Install the rear seat center armrest assembly with the 2 nuts.
    Fig 14: Locating Rear Seat Center Armrest Assembly Nuts
    G05755018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
