Rear Seat Assembly: Disassembly

  1. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY
    1. Remove the 2 nuts and the rear seat center armrest assembly
      Fig 1: Identifying Rear Seat Center Armrest Assembly Nuts
      G05755018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY
    1. Remove the 2 bolts
    2. Remove the 2 bushes
    3. Remove the rear seat center armrest hinge with the 2 rear seat center armrest hinge covers.
      Fig 2: Identifying Rear Seat Center Armrest Hinge Bolts And Bushes
      G05755019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Move the rear seat center armrest cover to the position as shown in the illustration
    5. Remove the 2 screws
      Fig 3: Identifying Rear Seat Center Armrest Cover Screw
      G05755020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Detach the 6 fasteners
    7. Disengage the 2 hooks and remove the rear seat center armrest cup holder sub-assembly.
    Fig 4: Identifying Fasteners Of Rear Seat Center Armrest Cup Holder Sub-Assembly
    G05755021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT HEADREST SUPPORT
    1. Disengage the 8 claws and remove the 4 rear seat headrest supports
      Fig 5: Identifying Claws Of Rear Seat Headrest Supports
      G05755022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SEAT SHOULDER BELT GUIDE LH
    1. Remove the screw (A).
    2. Remove the 2 screws (B) and the rear seat shoulder belt guide LH
      Fig 6: Identifying Screws Of Rear Seat Shoulder Belt Guide LH
      G05755023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT SHOULDER BELT GUIDE RH
    1. Remove the screw (A)
    2. Remove the 2 screws (B) and the rear seat shoulder belt guide RH
      Fig 7: Identifying Screws Of Rear Seat Shoulder Belt Guide RH
      G05755024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE BENCH TYPE REAR SEATBACK COVER
    1. Disengage the hook.

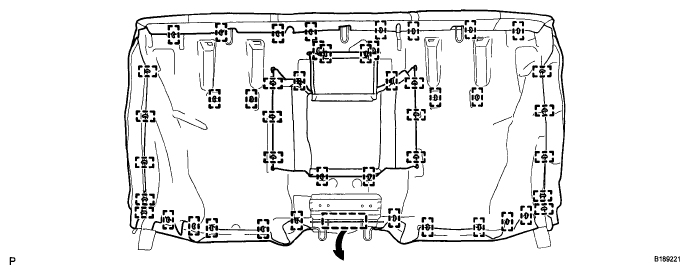

      Fig 8: Identifying Bench Type Rear Seatback Cover Hog Rings
      G05755025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 46 hog rings
    3. Remove the 28 hog rings and the bench type rear seatback cover from the bench type rear seatback pad.

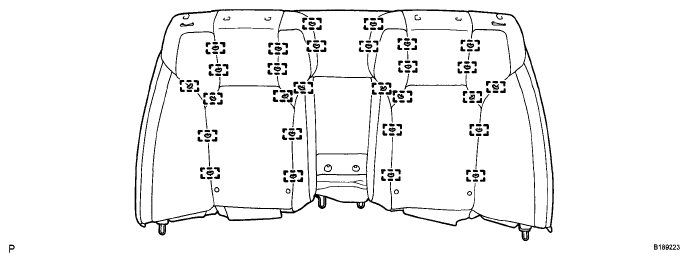

      Fig 9: Identifying Bench Type Rear Seatback Cover Hog Rings
      G05755026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SEAT UNDER TRAY SUB-ASSEMBLY
    1. Disengage the 2 claws.
    2. Disengage the 2 hooks and remove the rear seat under tray sub-assembly.
      Fig 10: Identifying Hooks Of Rear Seat Under Tray Sub-Assembly
      G05755027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER LH
    1. Disengage the hook.
    2. Remove the 21 hog rings.
    3. Remove the 6 hog rings and the separate type rear seat cushion cover LH from the separate type rear seat cushion pad sub-assembly
      Fig 11: Identifying Hog Rings Of Separate Type Rear Seat Cushion Cover LH
      G05755028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 12: Identifying Hog Rings Of Separate Type Rear Seat Cushion Cover LH
      G05755029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER RH
    1. Disengage the hook
    2. Remove the 20 hog rings
    3. Remove the 6 hog rings and the separate type rear seat cushion cover RH from the separate type rear seat cushion pad sub-assembly
      Fig 13: Identifying Hog Ring Of Separate Type Rear Seat Cushion Cover RH
      G05755030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 14: Identifying Hog Rings Of Separate Type Rear Seat Cushion Cover RH
      G05755031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
