Parts Location

Fig 1: Identifying Front Power Seat Control System Parts Location (1 Of 4)
G05754839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

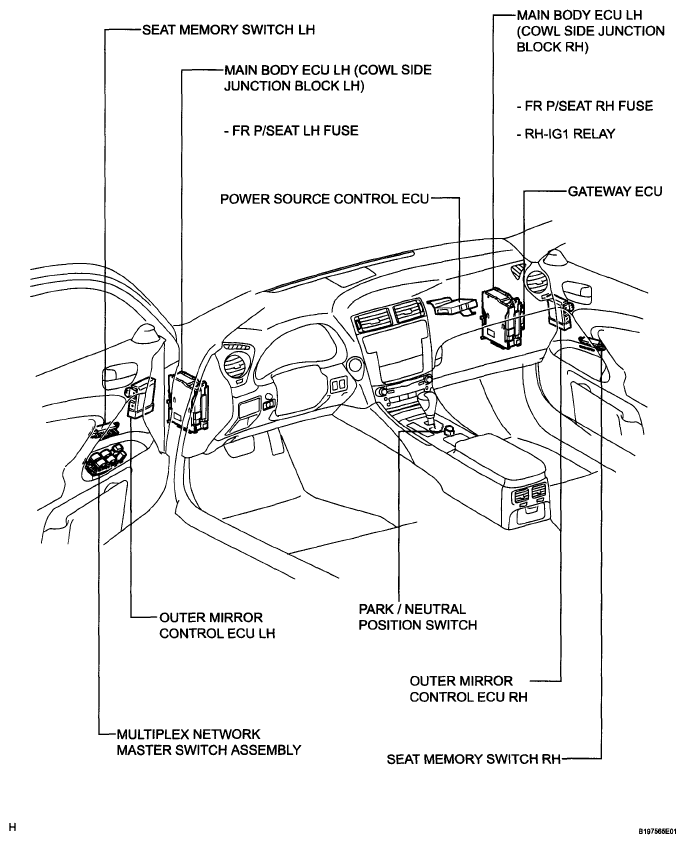

Fig 2: Identifying Front Power Seat Control System Parts Location (2 Of 4)
G05754840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

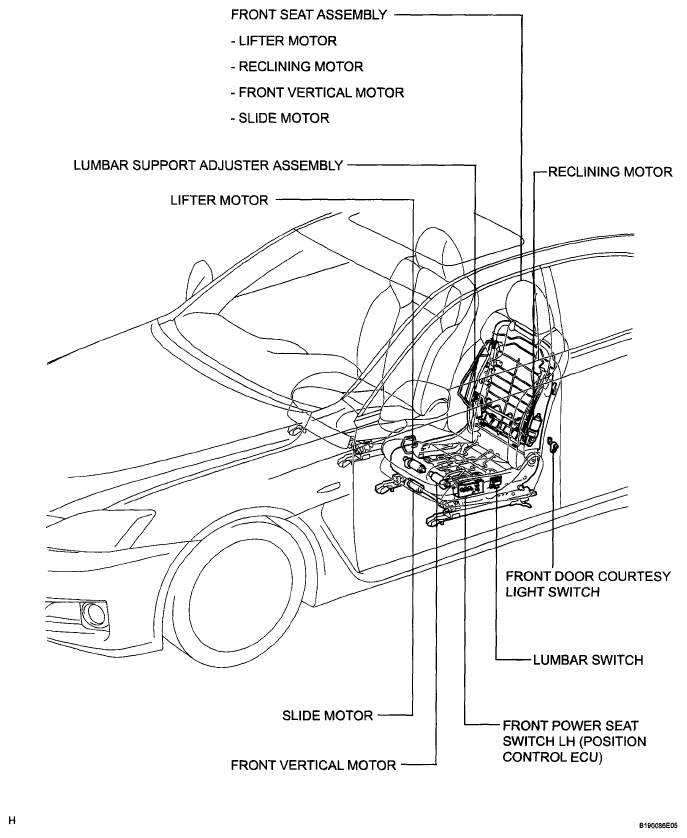

Fig 3: Identifying Front Power Seat Control System Parts Location (3 Of 4)
G05754841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

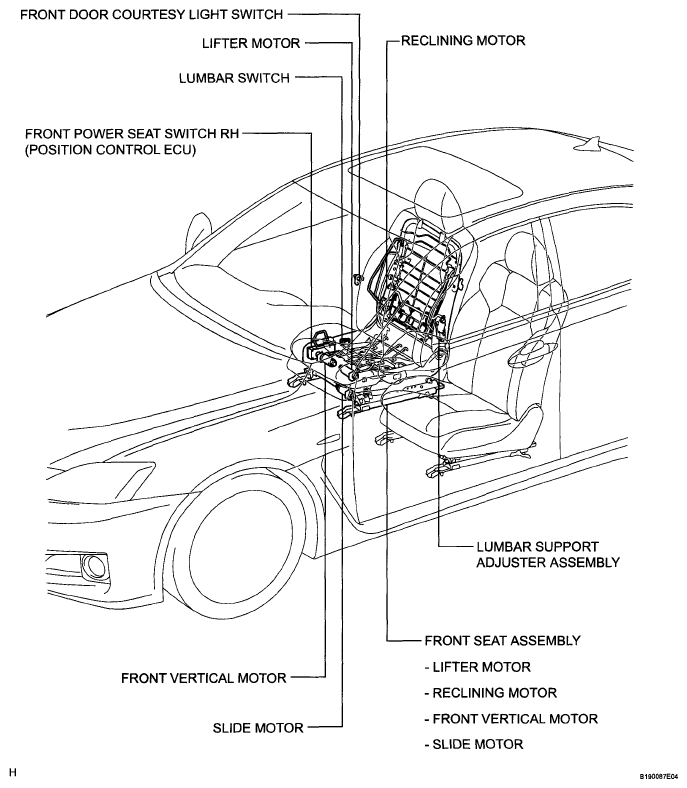

Fig 4: Identifying Front Power Seat Control System Parts Location (4 Of 4)
G05754842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
