Driver Side Seat Memory Switch Circuit: Wiring Diagram

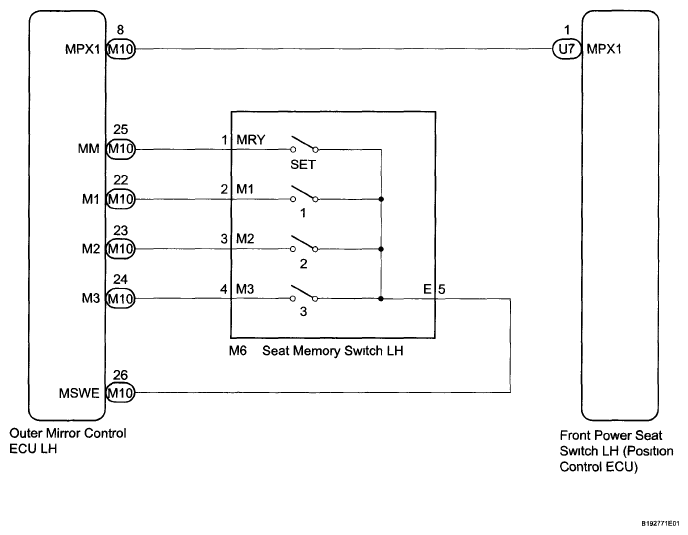

Fig 1: Driver Side Seat Memory Switch Wiring Diagram

G05754854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
