System Diagram

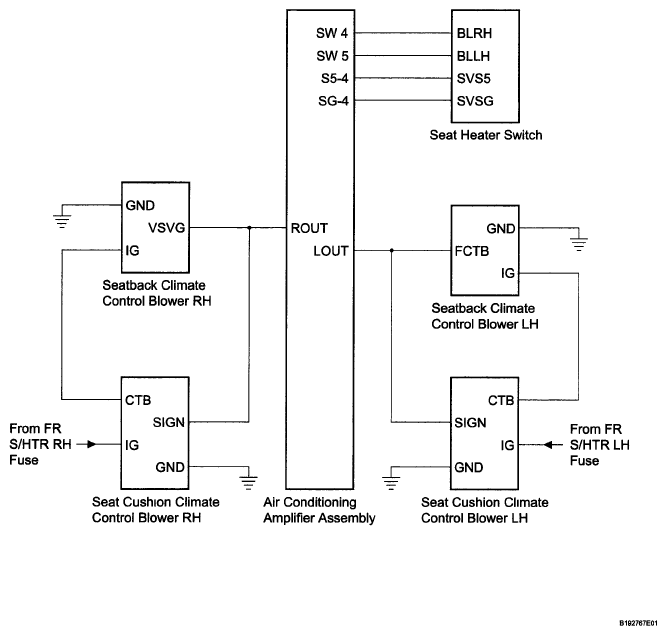

Fig 1: Climate Control Seat System Diagram

G05754869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
