Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Climate Control Seat System >> Parts Location

Parts Location

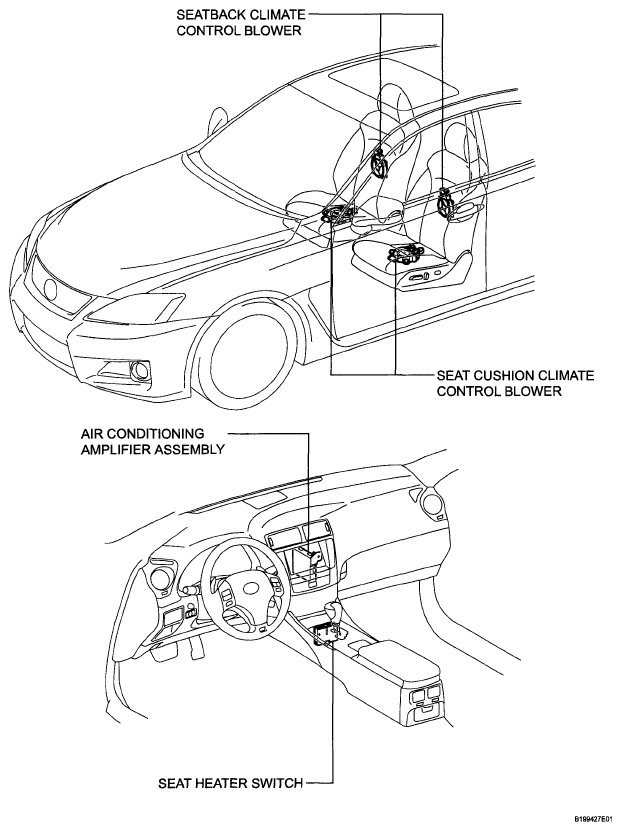

Fig 1: Identifying Climate Control Seat System Parts Location

G05754868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
