Climate Control Seat System does not Operate: Wiring Diagram

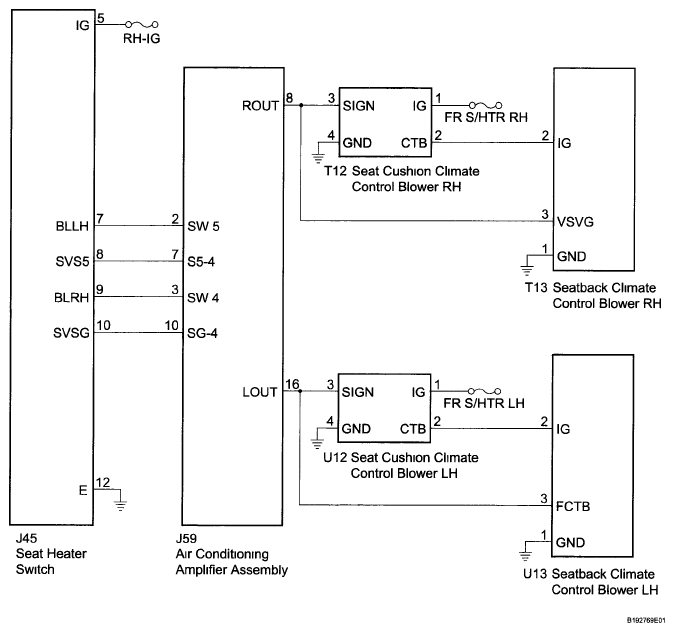

Fig 1: Climate Control Seat System Wiring Diagram

G05754872

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
