Front Console Box: Components

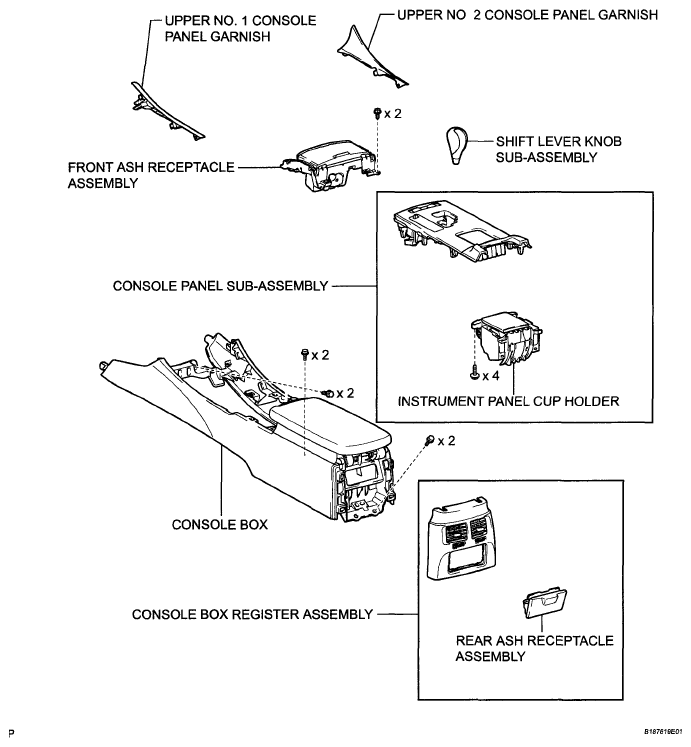

Fig 1: Identifying Front Console Box Components (1 Of 2)
G05755593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

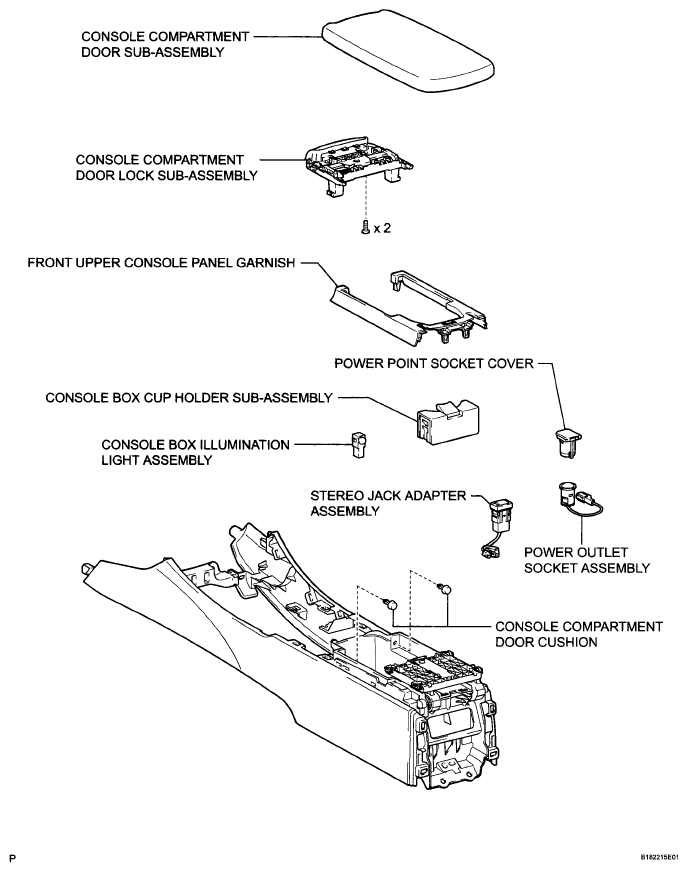

Fig 2: Identifying Front Console Box Components (2 Of 2)
G05755594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
