Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Rocker Panel Molding >> Components

Rocker Panel Molding: Components

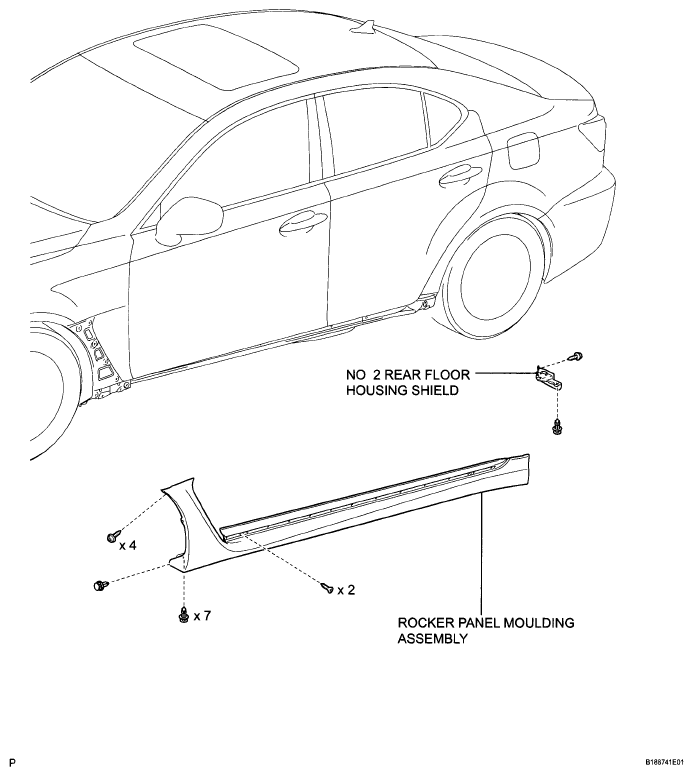

Fig 1: Identifying Rocker Panel Molding Components (1 Of 2)
G05756779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

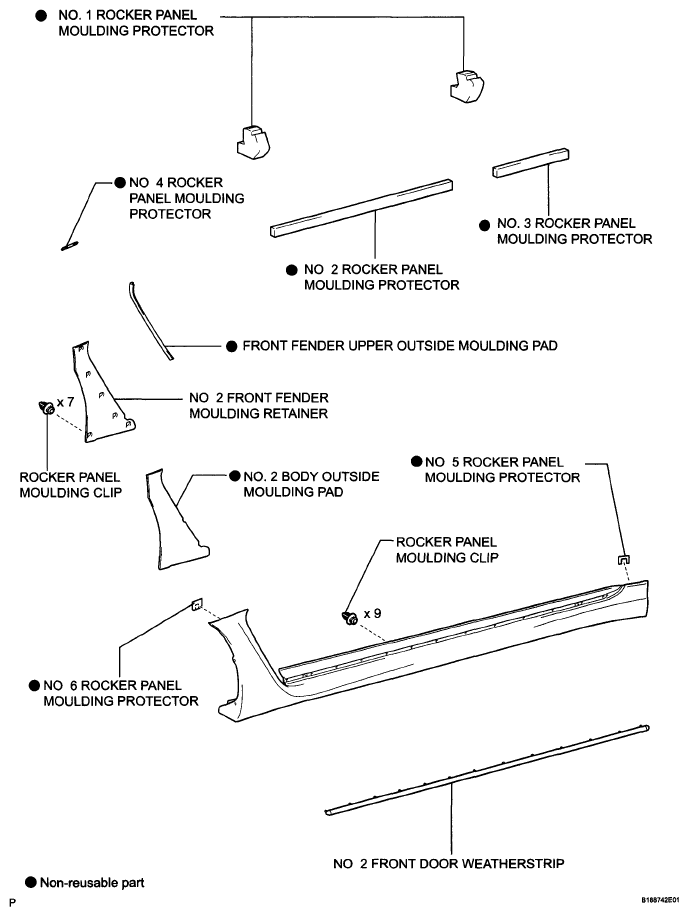

Fig 2: Identifying Rocker Panel Molding Components (2 Of 2)
G05756780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
