Front Door Window Frame Molding: Components

Fig 1: Identifying Front Door Window Frame Molding Components (1 Of 2)
G05756814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

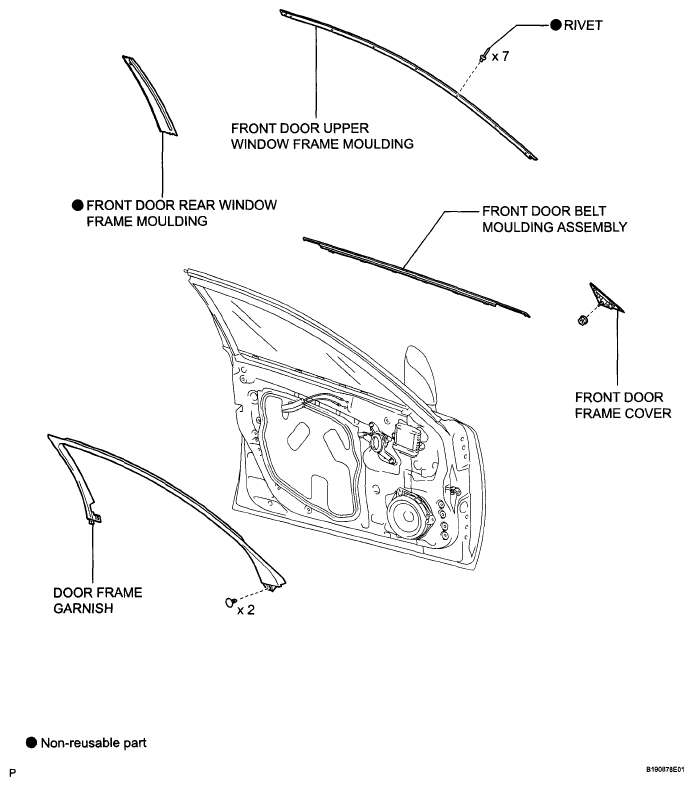

Fig 2: Identifying Front Door Window Frame Molding Components (2 Of 2)
G05756815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
