Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Theft Deterrent / Keyless Entry >> Security Horn Assembly >> Components

Security Horn Assembly: Components

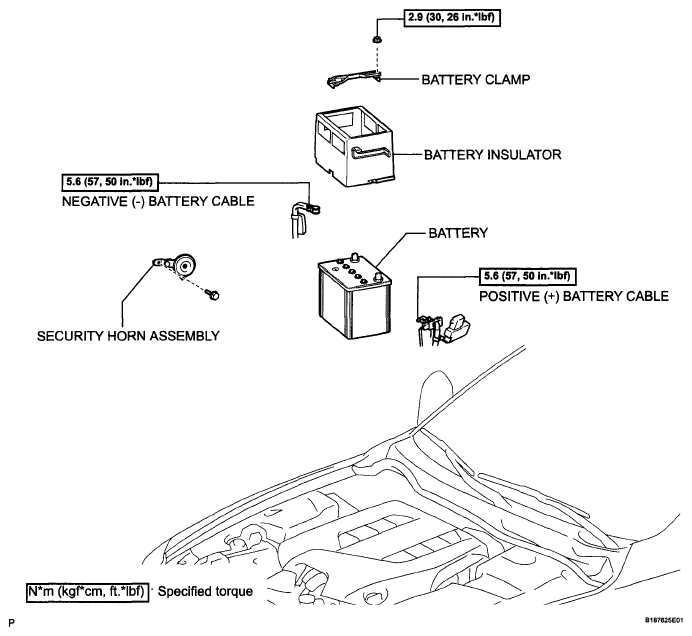

Fig 1: Security Horn Replacement Components With Torque Specifications

G05754581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
