Parts Location

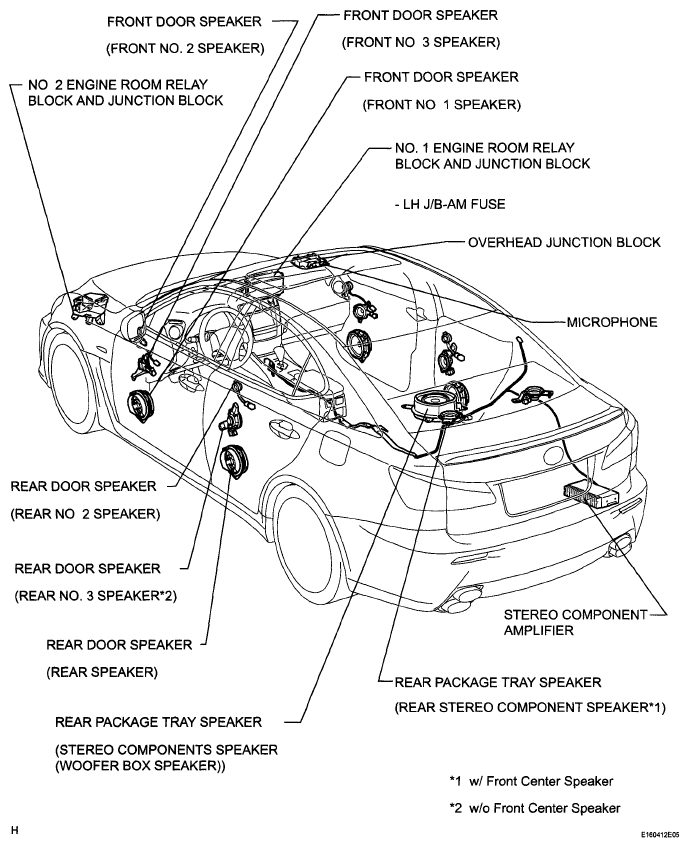

Fig 1: Identifying Navigation System Components Location (1 Of 2)
G05753509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

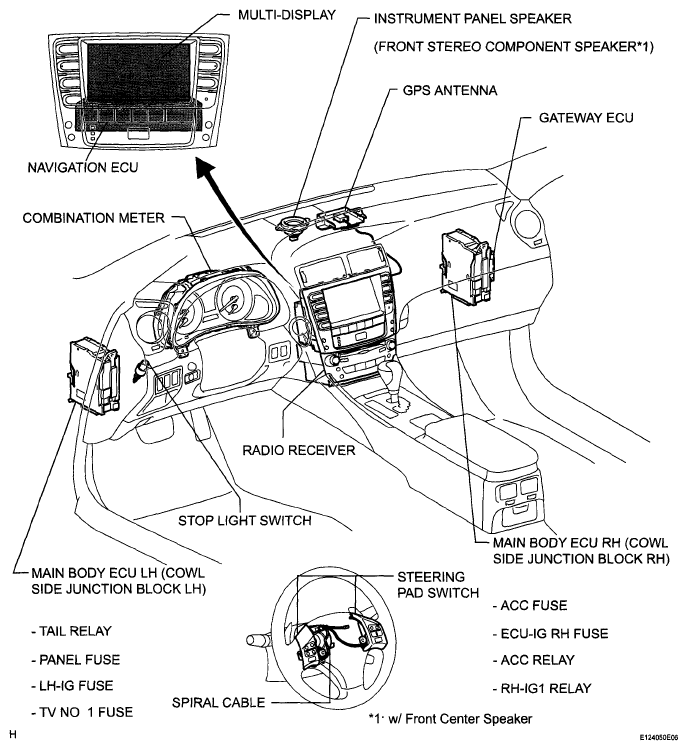

Fig 2: Identifying Navigation System Components Location (2 Of 2)
G05753510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
