Navigation Antenna: Installation

  1. INSTALL NAVIGATION ANTENNA
    1. Install the navigation antenna with the 2 screws.
    2. Engage the 2 clamps

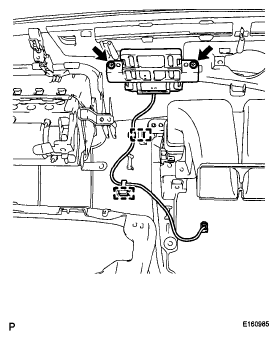

    Fig 1: Locating Navigation Antenna Screws And Clamp
    G05753780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL DEFROSTER NOZZLE ASSEMBLY  (See REASSEMBLY )
  3. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT  (See REASSEMBLY )
  4. INSTALL NO. 3 HEATER TO REGISTER DUCT  (See REASSEMBLY )
  5. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY  (See INSTALLATION )
  6. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  7. INSTALL NO. 1 CONSOLE BOX DUCT  (See INSTALLATION )
  8. INSTALL NO. 2 CONSOLE BOX DUCT  (See INSTALLATION )
  9. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See INSTALLATION )
  10. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
  11. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  12. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  13. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  14. INSTALL FRONT PILLAR GARNISH RH

    HINT

    Removal procedure of the RH side is the same as that of the LH side.

  15. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  16. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  17. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  18. INSTALL SIDE INSTRUMENT PANEL RH  (See INSTALLATION )
  19. INSTALL FRONT DOOR OPENING TRIM COVER RH  (See INSTALLATION )
  20. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT

    Removal procedure of the RH side is the same as that of the LH side

  21. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  22. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  23. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  24. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  25. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  26. INSTALL SIDE INSTRUMENT PANEL LH  (See INSTALLATION )
  27. INSTALL FRONT DOOR OPENING TRIM COVER LH  (See INSTALLATION )
  28. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  29. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  30. INSTALL STEERING COLUMN COVER  (See INSTALLATION )
  31. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  32. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  33. INSTALL STEERING PAD  (See INSTALLATION )
  34. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  35. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  36. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  (See INSTALLATION )
  37. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  38. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  39. INSTALL CONSOLE BOX  (See INSTALLATION )
  40. INSTALL CONSOLE BOX REGISTER ASSEMBLY  (See INSTALLATION )
  41. INSTALL REAR ASH RECEPTACLE ASSEMBLY  (See INSTALLATION )
  42. INSTALL FRONT ASH RECEPTACLE ASSEMBLY  (See INSTALLATION )
  43. INSTALL CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  44. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH  (See INSTALLATION )
  45. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH  (See INSTALLATION )
  46. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  (See INSTALLATION )
  47. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  48. INSPECT STEERING PAD  (See INSTALLATION )
  49. INSPECT SRS WARNING LIGHT

    (See INSTALLATION )
