Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual >> Rear Door Speaker >> Components

Rear Door Speaker: Components

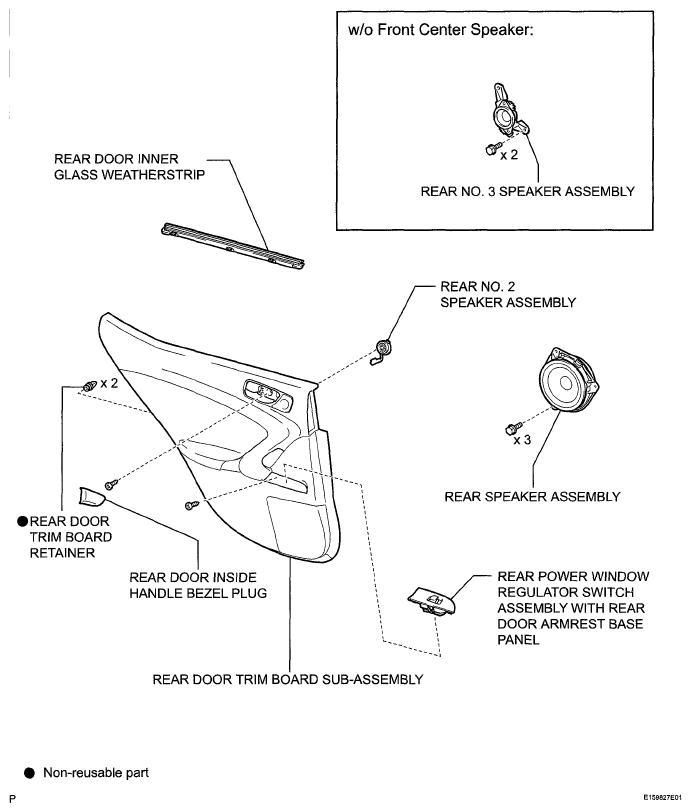

Fig 1: Identifying Rear Door Speaker Components

G05753447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
