Instrument Panel Speaker: Components

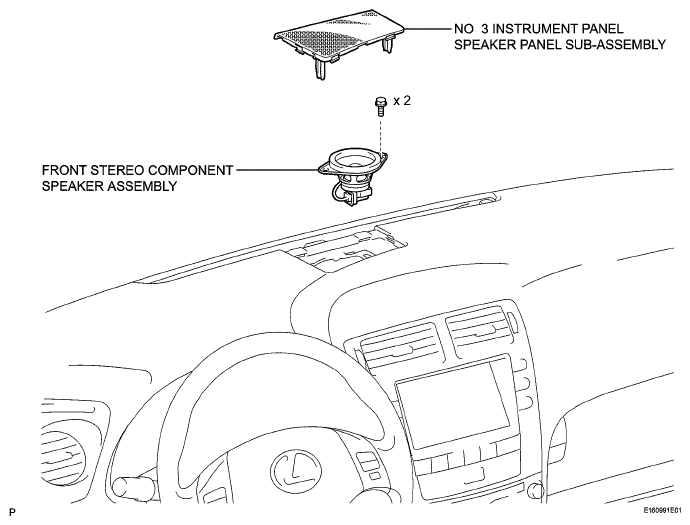

Fig 1: Identifying Instrument Panel Speaker Components

G05753456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
