Steering Pad Switch Circuit: Wiring Diagram

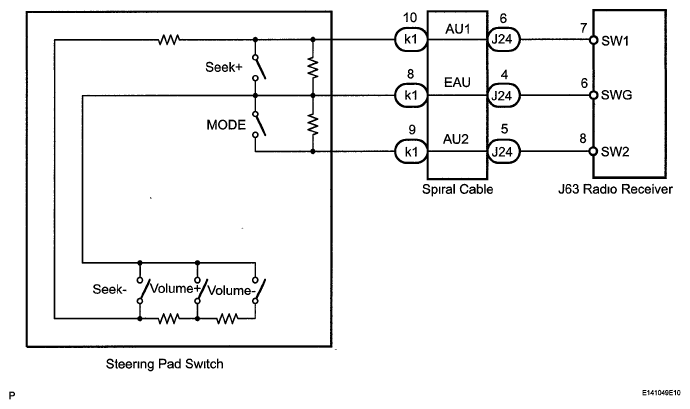

Fig 1: Steering Pad Switch - Wiring Diagram

G05753329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
