Parts Location

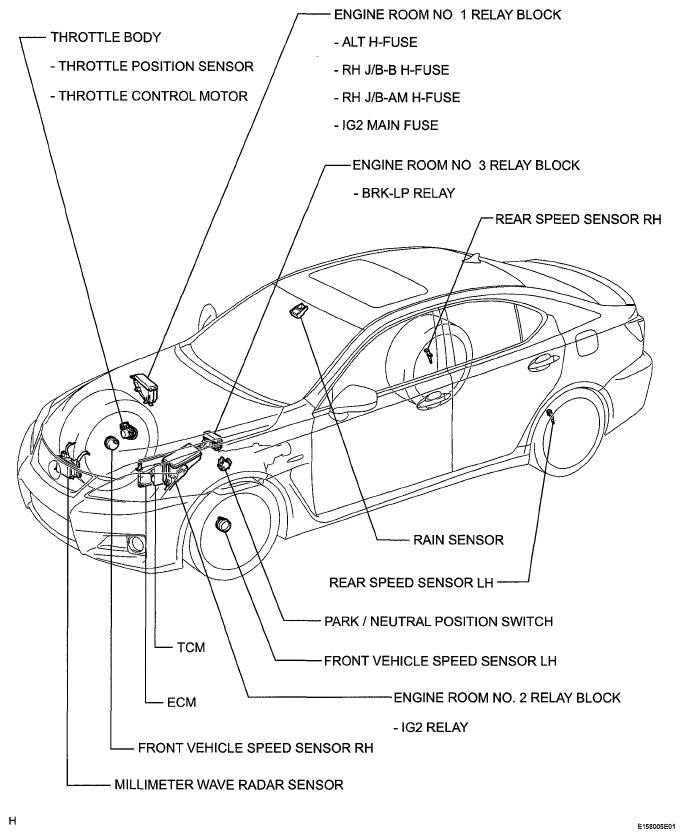

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (1 Of 3)
G05750582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

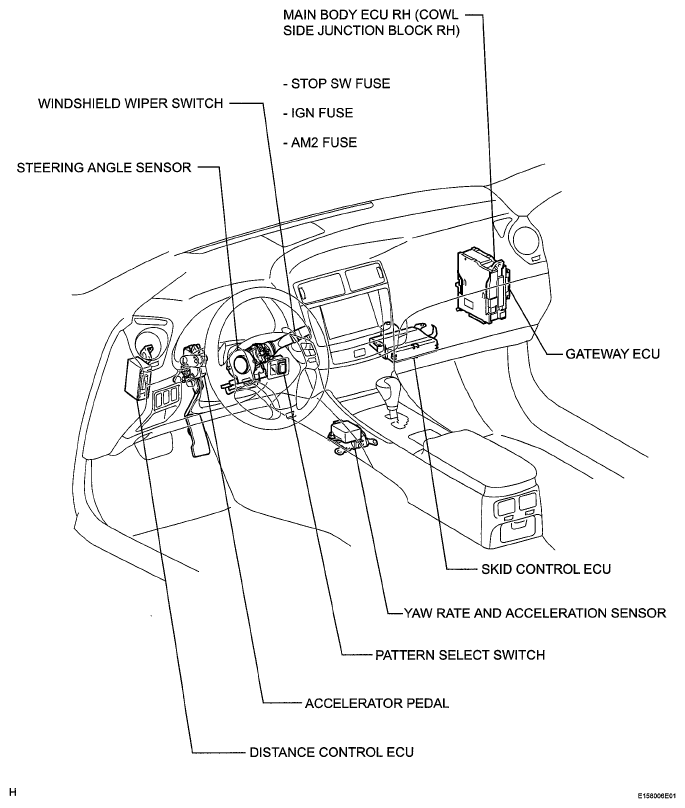

Fig 2: Identifying Dynamic Radar Cruise Control System Components Location (2 Of 3)
G05750583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

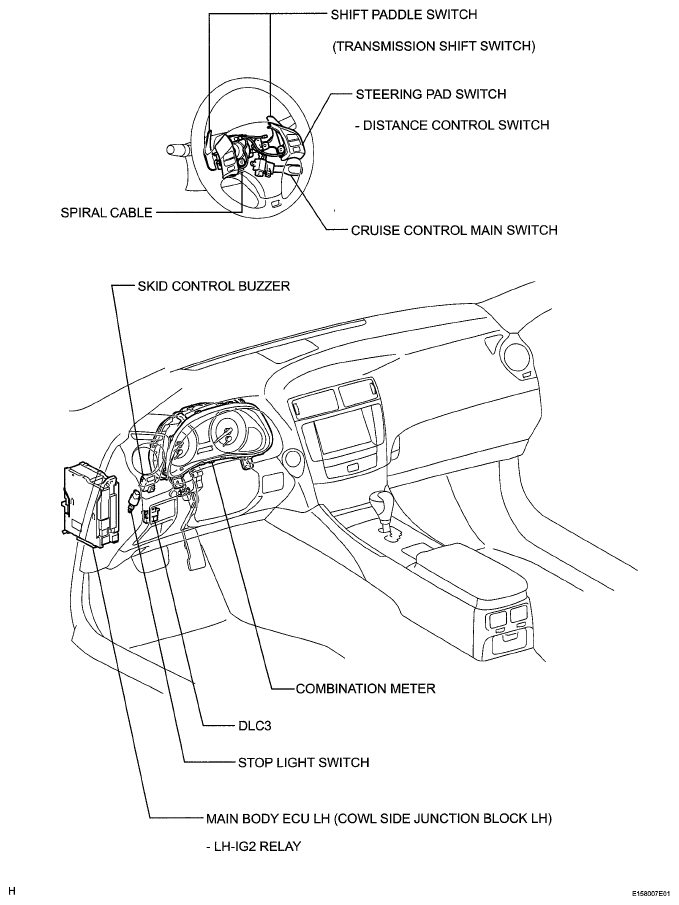

Fig 3: Identifying Dynamic Radar Cruise Control System Components Location (3 Of 3)
G05750584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
