Parts Location

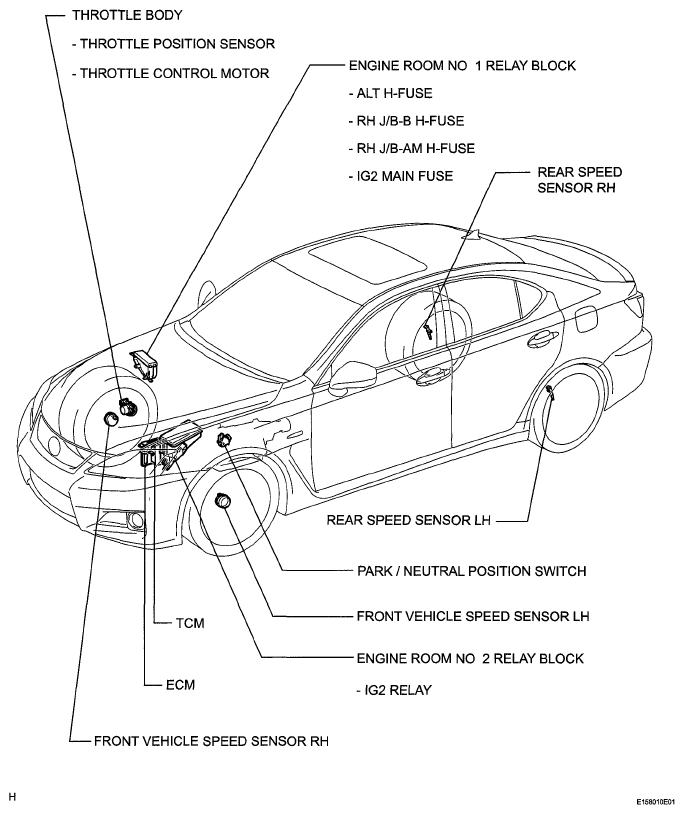

Fig 1: Identifying Cruise Control System Components Location (1 Of 2)
G05750557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

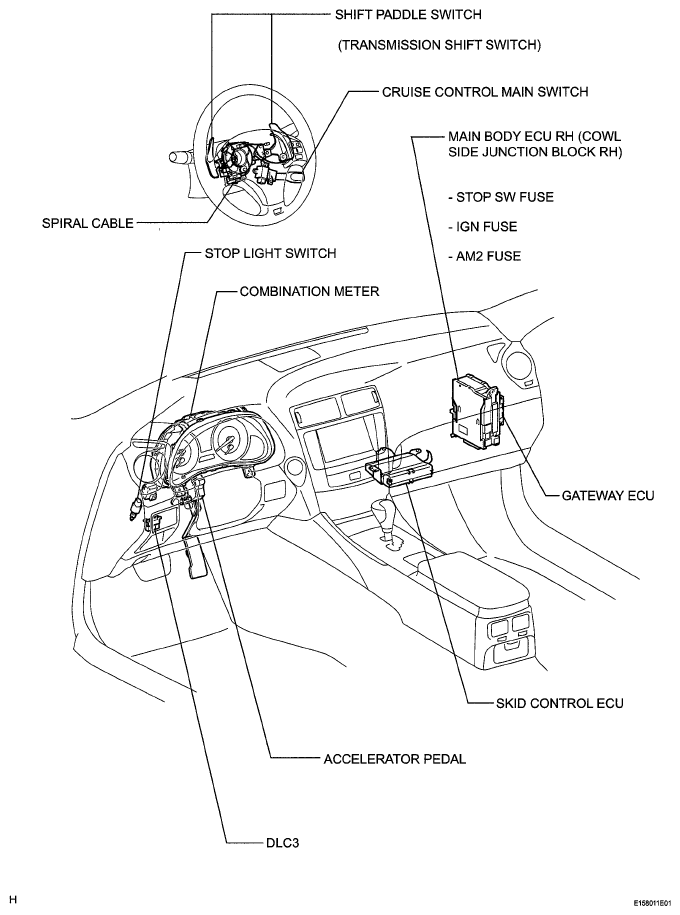

Fig 2: Identifying Cruise Control System Components Location (2 Of 2)
G05750558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
