Parts Location

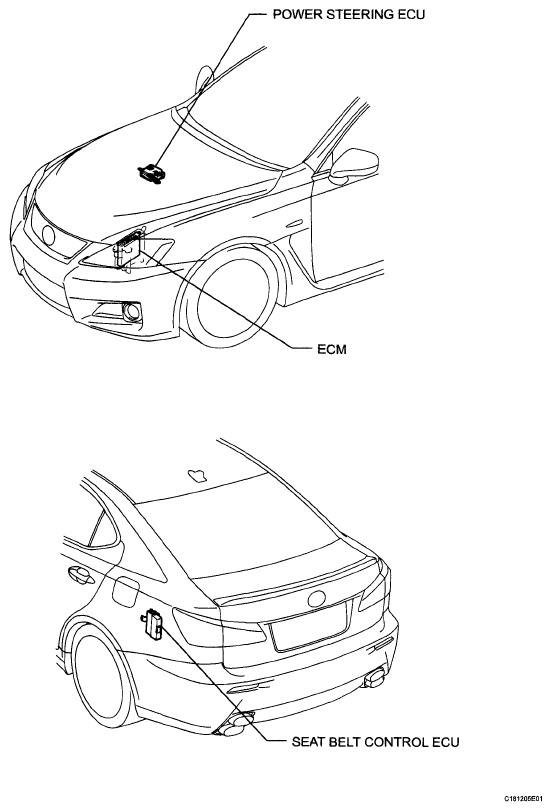

Fig 1: Identifying Power Sensor And Steering Angle Sensor Part Location (1 Of 2)
G05754109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

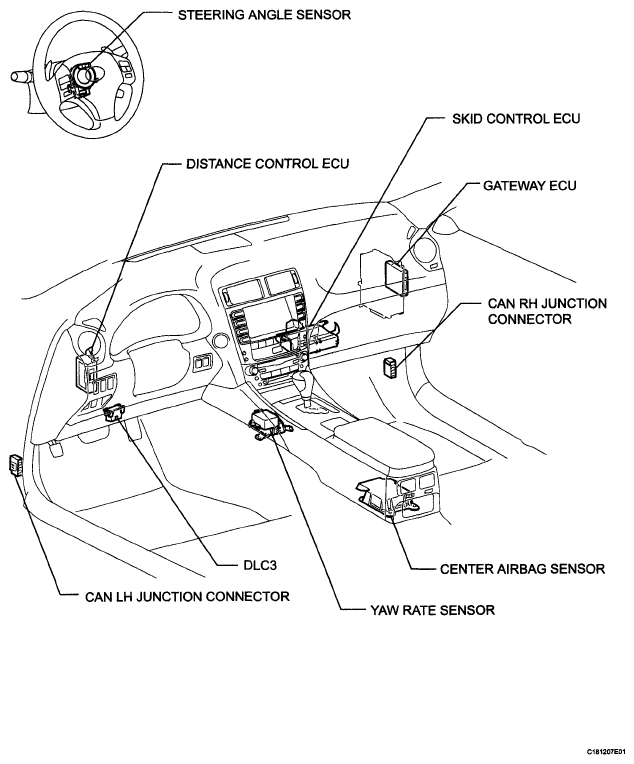

Fig 2: Identifying Power Sensor And Steering Angle Sensor Part Location (2 Of 2)
G05754110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
