Open in CAN Main Bus Line: Wiring Diagram

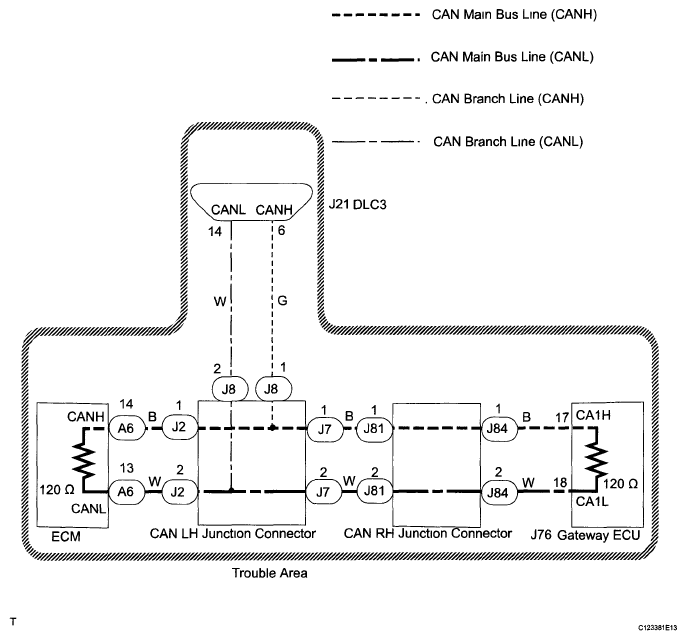

Fig 1: Connector Junction - Wiring Diagram

G05754156

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
