ECM Communication Stop Mode: Wiring Diagram

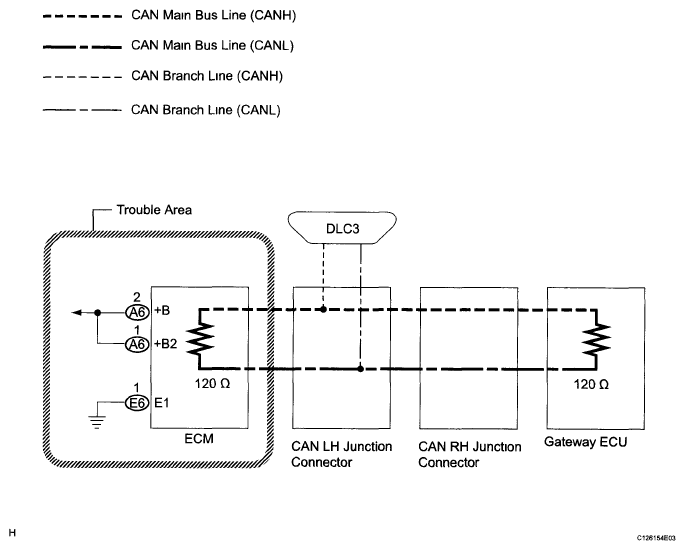

Fig 1: ECM Communication - Wiring Diagram

G05754151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
