Steering Wheel: Components

Fig 1: Steering Wheel Assembly Replacement Components (1 Of 5) with Torque Specifications
G05753021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

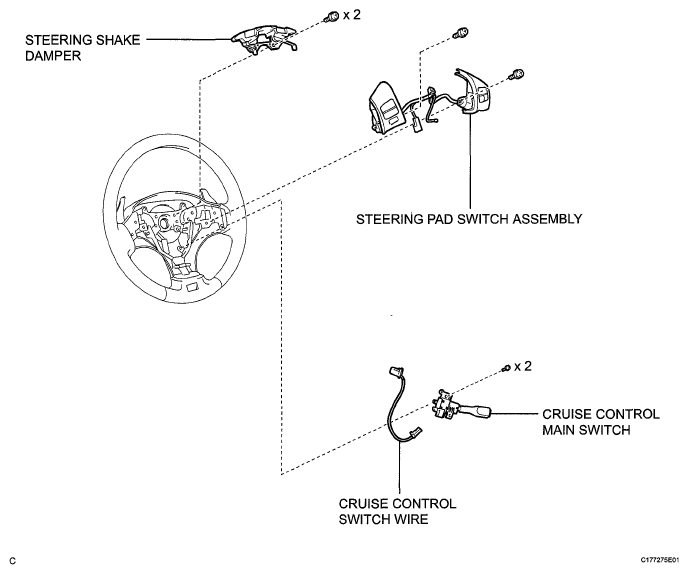

Fig 2: Identifying Steering Wheel Components (2 Of 4)
G05753051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

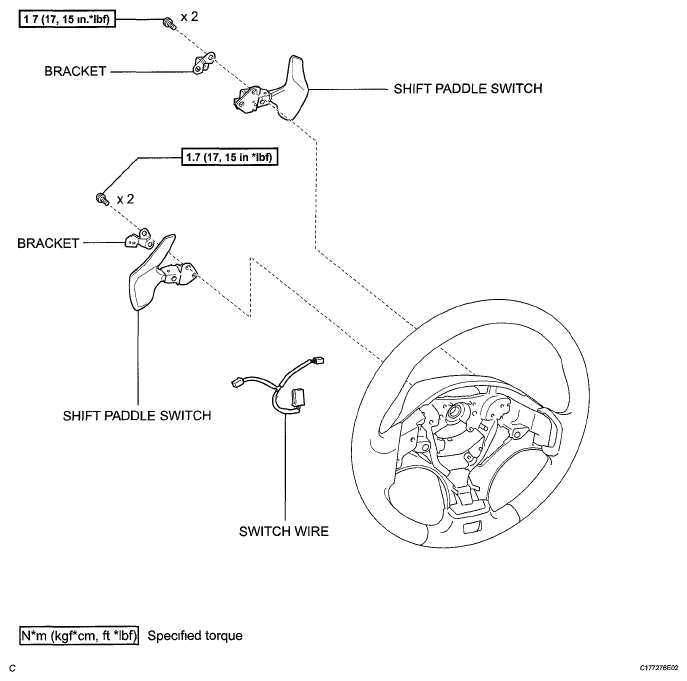

Fig 3: Steering Wheel Replacement Components (3 Of 4) with Torque Specifications
G05753052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

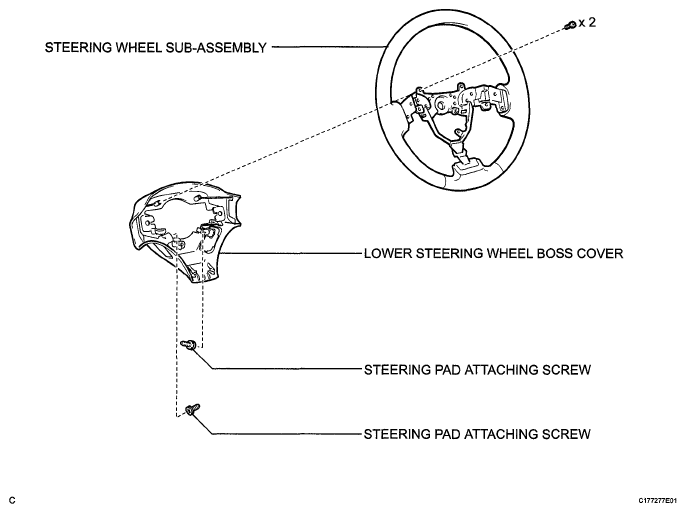

Fig 4: Identifying Steering Wheel Components (4 Of 4)
G05753053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
