DTC B2611: Telescopic Position Sensor or Telescopic Motor Circuit Malfunction: Wiring Diagram

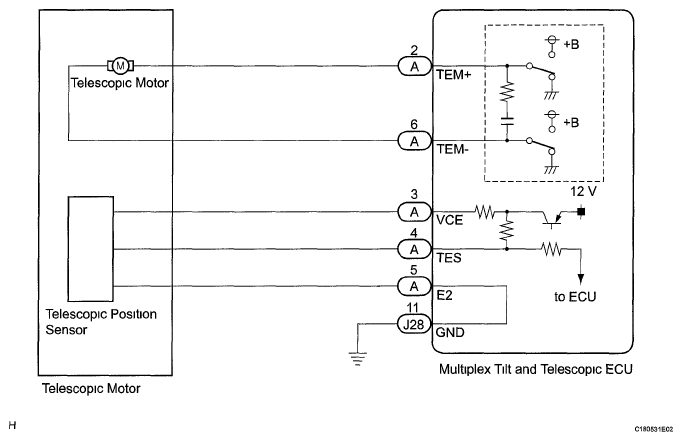

Fig 1: Telescopic Position Sensor - Wiring Diagram

G05752971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
