Engine Oil Temperature Sensor: Components

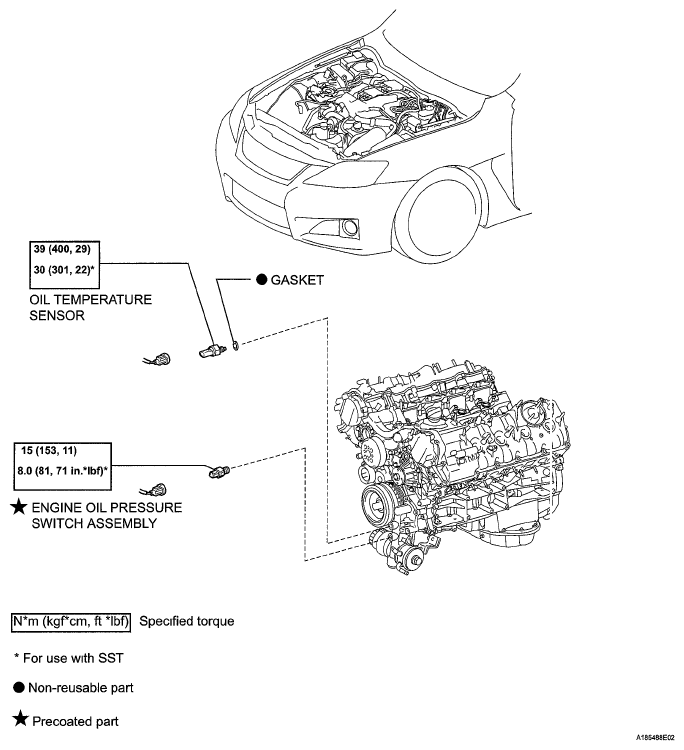

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications

G05751969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
