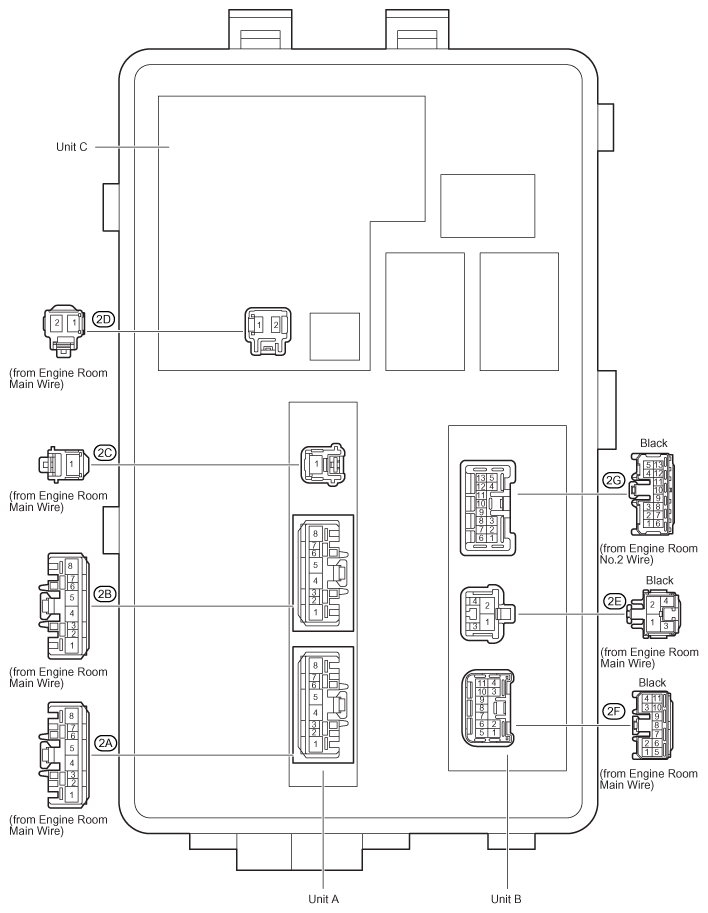

Engine Room Relay Block No.2 AssemblyAnd Engine Room Junction Block No.2 Assembly

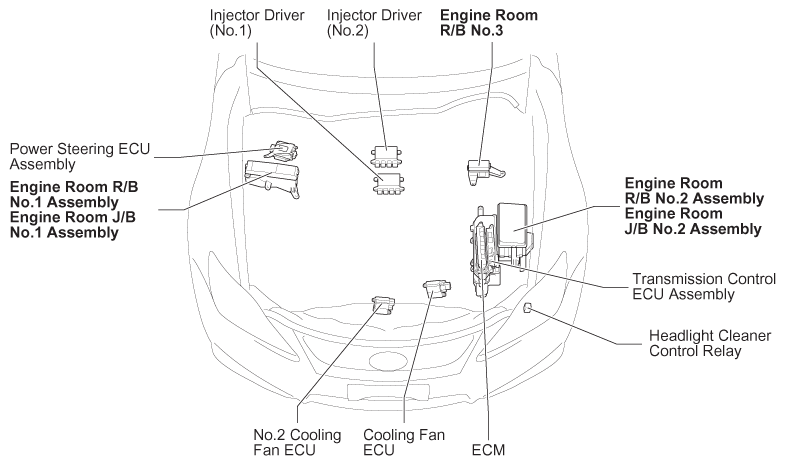

Left Engine Compartment (See Figure)

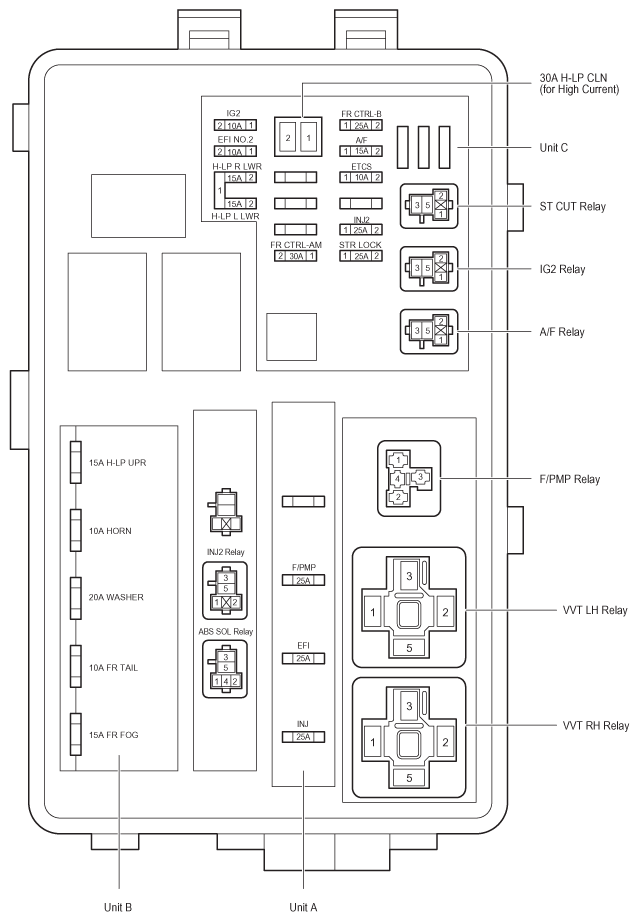

ENGINE ROOM R/B AND J/B NO.2 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ST CUT Relay |
| IG2 Relay |
| A/F Relay |
| F/PMP Relay |
| VVT LH Relay |
| VVT RH Relay |
ENGINE ROOM R/B AND J/B NO.2 FUSE IDENTIFICATION
| Fuse | System | |
|---|---|---|
| 10A | EFI NO.2 | Engine Control, Electronically Controlled Transmission and A/T Indicator |
| 10A | ETCS | Cruise Control |
| Dynamic Radar Cruise Control | ||
| Engine Control, Electronically Controlled Transmission and A/T Indicator | ||
| 10A | FR TAIL | Automatic Light Control and Light Auto Turn Off System |
| Headlight | ||
| Taillight | ||
| 10A | HORN | Horn |
| Smart Access System with Push-Button Start and Theft Deterrent | ||
| 10A | IG2 | Engine Control, Electronically Controlled Transmission and A/T Indicator |
| Ignition | ||
| 15A | A/F | Engine Control, Electronically Controlled Transmission and A/T Indicator |
| 15A | FR FOG | Front Fog Light |
| 15A | H-LP L LWR | Headlight |
| 15A | H-LP R LWR | Headlight |
| 15A | H-LP UPR | Adaptive Front-Lighting System |
| Headlight | ||
| 20A | INJ | Engine Control, Electronically Controlled Transmission and A/T Indicator |
| 20A | WASHER | Front Wiper and Washer |
| Headlight Cleaner | ||
| 25A | EFI | Cruise Control |
| Dynamic Radar Cruise Control | ||
| Engine Control, Electronically Controlled Transmission and A/T Indicator | ||
| 25A | F/PMP | Engine Control, Electronically Controlled Transmission and A/T Indicator |
| 25A | INJ2 | Engine Control, Electronically Controlled Transmission and A/T Indicator |
| 25A | STR LOCK | Smart Access System with Push-Button Start and Theft Deterrent |
| 30A | H-LP CLN | Headlight Cleaner |
