Engine Room Relay Block No.1 Assembly And Engine Room Junction Block No.1 Assembly Inner Circuit

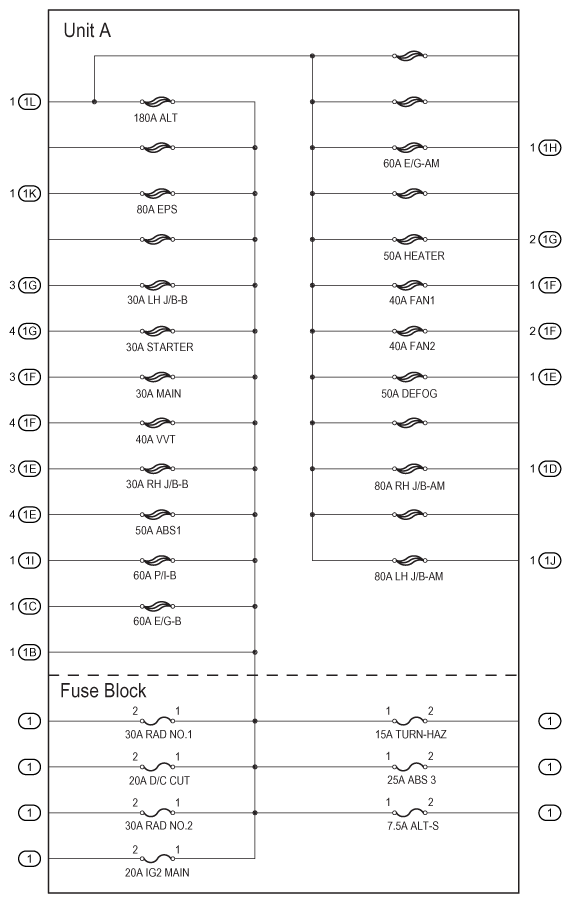

Fig 1: Engine Room R/B No.1 Assembly And Engine Room J/B No.1 Assembly Inner Circuit Diagram
G07592123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
